Hp 3495A multiplexer scanner mainframe, 3) opt 02

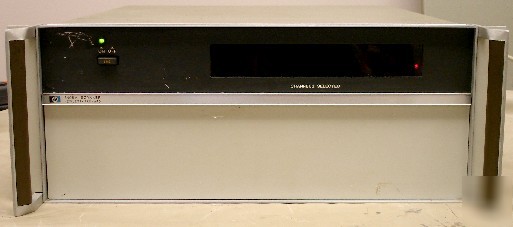

HP 3495A Multiplexer Scanner Mainframe
* Includes 3) OPT 02 10-Ch Relay Cards
Two types of relay assemblies available:
a low thermal scanner for connection to low level sources such as strain gauges and thermocouples
a relay actuator assembly for controlling higher current relays (capable of switching up to 2 A rms).
Option 002 - (Ten Channel Relay Actuator Assembly)
Process Control, Actuate Visual or Audio Indicators, Control High Current Relays, Up to 2 x 5 x 2 Matrix Switching. This Relay Actuator Assembly Provides Ten Independently Programmable 2-wire Closures for Controlling High Current Relays, Distributing Low Current DC or AC Voltages, or External Control Function. Each Two-pole Relay can Switch Currents up to 2A rms. Any Combination of Channels on this Assembly May be Closed or Opened Simultaneously.
