Narda Microline Coaxial 3-8 GHz Directional Coupler
Narda 3094 Microline Coaxial 3-8GHz Directional Coupler

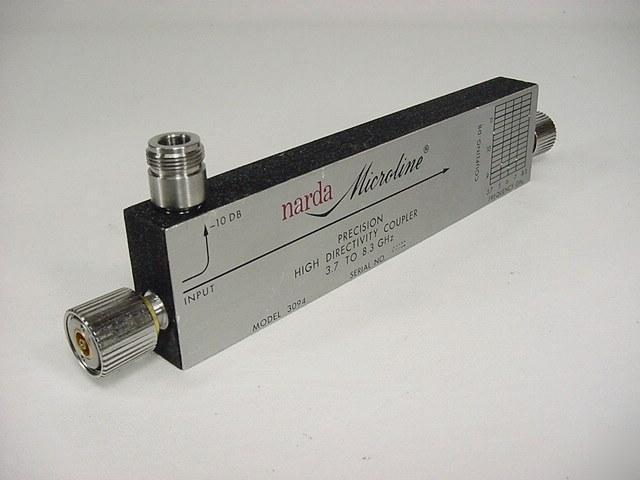

This is a Narda Microline PRECISION coaxial directional coupler. The model is 3094. This directional coupler has absolute accuracy specs of +- 0.1 dB with a custom correction graph on the unit. It has the following specifications:
* Calibration accuracy +- 0.1 dB
* Connectors: 7 mm input/output, Type "N" at the tap.
This is a current Narda product. The data sheet is located HERE.
As the photos demonstrate, the coupler is in very good cosmetic condition. I have checked it and verified it is in good working condition. No electrical shorts or opens and the tap provides -10 dB.
