New group 5, 100 amp 220 v single phase plug, G106M

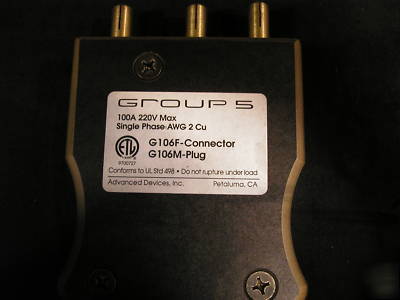

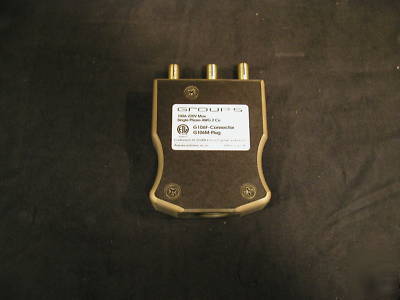

Group 5 - 100 Amp, 220V Single Phase Plug, AWG 2 Cu
Measures 4.25" x 6" (to end of pins, Body is 5") x 1.5"
distance from center of pin 1 to center of pin 3 is 2.75"
distance from center of pin 1 to center of pin 2 is 1.5"
distance from center of pin 2 to center of pin 3 is 1.25"
distance from outside edge of pin 1 to outside edge of pin 3 is approximately 3 3/16"
Pins are approximately .44" in diameter
