RA2-rs repeater adaptor motorola GM300 cdm CDM1250 rick
RA2-RS BI-DIRECTIONAL REPEATER ADAPTOR FOR MOTOROLA RADIOS
Now available with remote-mount on/off switch
Perfect for console-mounted radios in public safety vehicles
* Compact unit measures 1.6 x 3.2 x .80".
* 20" cables (Custom cable lengths are available by special order at additional cost - please inquire).

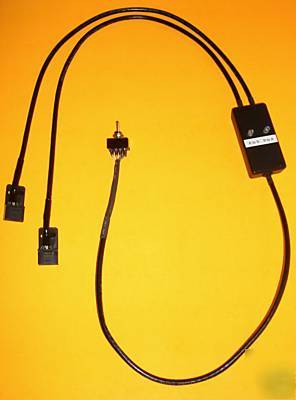

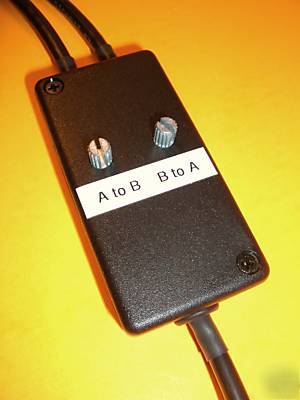

Introducing the RA2-RS, Bi-directional Repeater Adaptor. This handy device connects two Motorola mobile radios back to back as a 2-direction repeater. Signals received on Radio A are retransmitted by Radio B and vice versa. If you want to repeat signals in only one direction please check out the RA-1 Repeater Adaptor (click on "Store View", above).

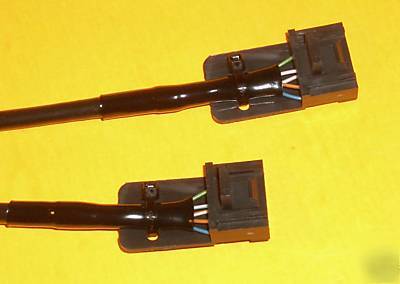

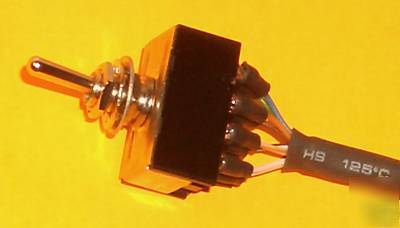

This product (RA2-RS) operates the same as the RA-2, with the on-off switch located outside the enclosure at the end of a 20" cable, permitting greater installation flexibility. After connecting the two plugs to the radios and setting the audio levels, the enclosure can be secured out of the way using the included Dual-Lock fasteners. The on-off switch is user-installed in a 0.25" round panel cutout. The switch requires minimum clearance behind the panel of 0.50 H x 0.92 W x 1.50" D.
