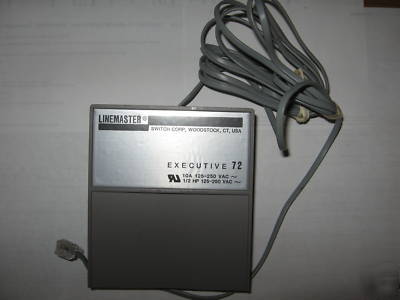

Linemaster executive 72 foot switch
The Linemaster Executive model 72's mechanical interlock prevents both circuits from being operated at the same time. With the modern styled die cast cover, painted medium grey finish w/ a full non-skid base pad. All wiring connections are made internally so only a single cord must be brought out of the foot switch eliminating costly wire harness assemblies.
Type: Motion Control Device/ Rocker Action Low Profile Design
Electrical Ratings: 10A 125- 250 VAC/ H.P. 125- 250 VAC
Size (H x W x D): 1.625 x 4.28 x. 4.75
* Cover is medium grey Die Cast Zinc material
* Mechanical interlock- prevents both circuits from being operated at the same time
* Operates on the teeter-totter principle i.e. Pressure on one side opens or closes line, release of pressure returns switch to normal off position, pressure on other side opens or closes circuit, independent of first.
* Both sides can be wired normally open or normally closed
* All wiring connections are made internally with only a single cord being brought out
* Eliminates costly harness assemblies
