> 0.96" oled 128X64 display modules ( with pic code)
0.96" oled 128X64 display modules ( with pic code)
0.96" OLED 128x64 display modules
Driver I.C SH1101A controller (Datasheet : www.wide.hk/pdf/SH1101A.pdf )
* No LED backlight, save the power
1) PIC sources code (Download)
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
GND VCC RS RD CS RES D0 D1 D2 D3 D4 D5 D6 D7 NC WR NC NC VCC GND

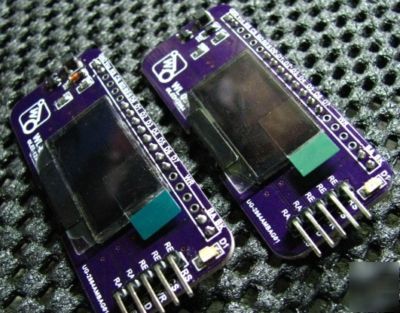

2 type oLED color for choose. see the below picture 1 or 2
