Qty 2 microlab/fxr sf-11N double slug tuners impedance
Qty 2 Microlab/FXR SF-11N Double Slug Tuners Impedance

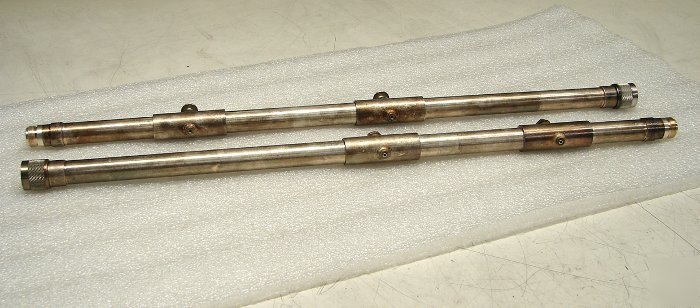

This item contains two Microlab/FXR model SF-11N Double Slug Tuners. These consist of two identical slugs (impedance transformers) mounted in a 50-ohm line. The data sheet mentions that these are ideal to match TV Antenna Feeds to IOT, and for Amplifier Stability Testing. You can view the datasheet (PDF) at this link: Microlab SF Series Datasheet.
This model has the following specs:
* Frequency Range: 300-1700 MHz
* Max Slug Separation: 6.0 inches
* Max Slug Travel: 12 inches
* N-type connectors (one male and one female)
* Max Power Rating: 500 Watts avg.
It looks like the locking nuts on one of these units have been replaced with different screws (based on the photo in the datasheet). Otherwise these are both in good used shape. The slugs slide smoothly over their full range of travel on both units.
