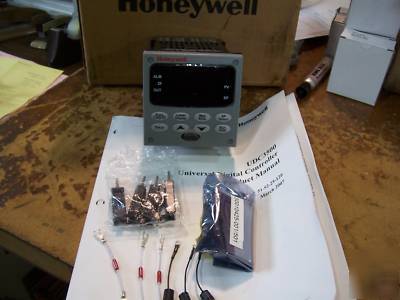

Honeywell UDC3500 control DC3500-R0-3000-211-00000-E0-0
Honeywell UDC3500 1/4 DIN Universal Digital Controller
High Accuracy: 0.25% Full Scale
Three Universal Analog Inputs (One Universal Input, Four High-Level Input) and Up to Four Digital Inputs; Up to Three Analog Outputs and Up to Five Digital Outputs
Infrared Communication Port on Front Panel (for Configuration)
Jumper-Free Configuration: All Setup and Configuration Done Through Keyboard or Infrared Communication Link
RS485 Modbus and Ethernet Communications
Single-Button Process Tuning with Fuzzy Overshoot Control
Heater Break Alarm and Thermocouple Health Diagnostics
Direct replacement for the UDC330E.
Built on the legacy of Honeywell's field-proven UDC controller family, the UDC3500 introduces new features in the popular 1/4 DIN size while retaining the reliability, cost-effectiveness, simplicity, and popular interface of Honeywell's UDC3300 enhanced controller. The UDC3500 adds infrared communications for programming the controller with a Pocket PC, thermocouple health monitoring, Ethernet communication options, Accutune III advanced tuning with fuzzy overshoot control, and more.
Digital Controller for use with 90 to 264Vac Power + Current Output #1 DC3500
TABLE I - Specify optional Output and/or Alarms
Dual 2 Amp Relays (Form A) (Heat/Cool, Pos Prop, TPSC, Relays 1 & 2)
TABLE II - Communications and Software Selections
10 Base-T Ethernet (Modbus RTU) + (4) Digital Inputs
TABLE III - Input types can be changed in the field
TC, RTD, mV, 0-5V, 1-5V, 0-20mA, 4-20Ma
