> New tempo a-bug 240PH tone probe kit wire tace tracing
New tempo a-bug 240PH tone probe kit wire tace tracing

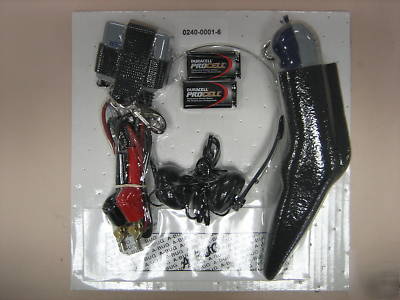

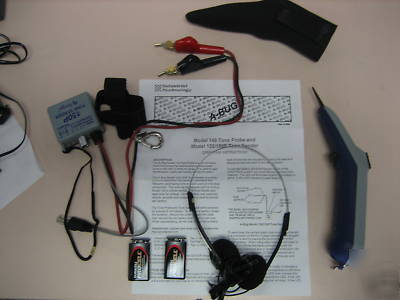

240PH Tone Probe Kit Includes Models 140P, 150, 360, 361, 362 and two batteries.
Here is a link to the manufacturer
http://www.cve.co.uk/prod_list.cfm?qt=1&searchButton=+Go+&st=alligator
The Model 140 Tone Probe is a hand-held probe used by telephone or
LAN construction, installers and splicers to detect audio tones used for
identification, cable tracing or repair. The Model 140 will give an audible
and visual indication if a tone is detected. The Model 140 detects
frequencies in the range from 500 to 1000 Hertz.
A-Bug brand Model 150 Tone Sender
The A-Bug brand Model 150 Tone Sender is a miniature, tone generator
that sends a modulated two-frequency alternating tone on working or
non-working pairs or individual conductors for detection with the Model
140 Tone Probe or other similar probes. It also tests lines for voltage
including ringing, polarity, continuity, shorts, grounds and crosses; and
also provides talk battery for communications between two locations.
Two outputs are provided, an alligator clip output suitable for connect-
ion to wires or terminals, and an RJ-11 output for plugging into RJ-11
The Model 150 can send two types of tone. The factory setting is the
alternating high/low (900/800 Hz) tone modulated at 2.5 Hz. If desired,
an internal switch changes the output to a solid tone. The unit uses a
standard 9 volt battery and battery life is typically 100 hours with an
* Bevel-edged Probe Tip (An extra tip is stored in the battery
2.4 x 2.2 x 1.2 inches (61 x 56 x 30 mm)
4.6 oz. (130 grams) including battery
0 to 125 degrees F (-18 to 50 degrees C)
-40 to 140 degrees F (-4 to 60 degrees C)
One NEDA type 1604 9V battery (alkaline
Glass fiber reinforced Nylon 6/6
Two clips or one RJ-11 (in parallel)
User selectable 800 Hz solid tone or 800/900 Hz alternating high/low tone modulated at 2.5 Hz
Maximum Talk current (leads shorted):
LED on resistance in Continuity mode:
30 kohms (dim LED) to 3 kohms (bright LED)
LED on voltage in Off or Tone mode:
LED flashes with 20 Hz 80 volt peak-to-peak
voltage superimposed on 50 VDC
