New 12 wheel v hay rake ----- 4 ground wheels

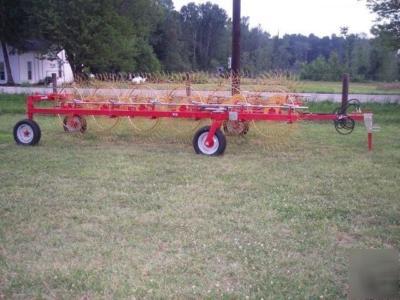

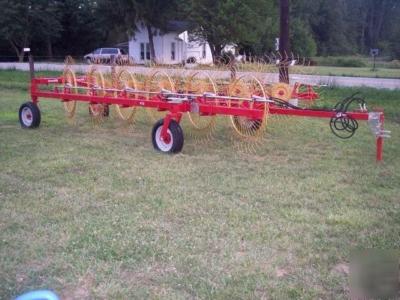

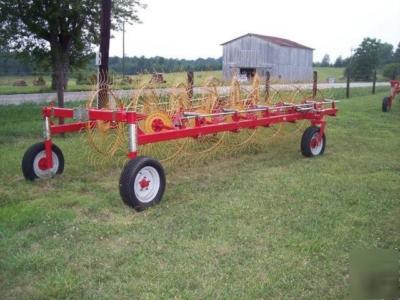

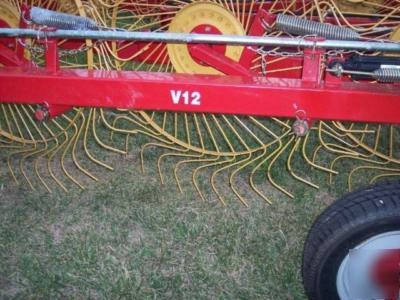

1. This is a 12 wheel V hay rake.
2. This is a Tonutti Raptor hay rake.
4. It has 12 finger raking wheels.
5. The finger wheels are 55 inches in diameter and the tines are 7mm in diameter.
6. The maximum working width on this rake is 22'5" that you can rake.
7. The windrow width is from 4' to 6'.
8. Appropriate working speed is 14mph.
9. Recommended hp of the tractor to operate this rake is 30.
10. The weight of the rake is 2266 pounds.
11. Transport width of the rake is 8'.
12. It does have 4 new tires that are 185/65-14.
13. Comes complete with 3 hydraulic cylinders. One double acting cylinder is placed on the drawbar of the machine to open and close the machine in a few seconds from transport position to working position and back from the tractor seat. The two other cylinders are placed on the side frames to raise and lower the finger wheels in seconds.
14. The Raptor rake is ground driven.
15. These rakes work well on all types of hay. They work well on high volume crops, delicate crops like alfalfa, heavy and wet wilage. They also work well on inclines and hilly areas.
