TC7129 adc, 4.5 digit panel meter ic .005% accuracy (X2

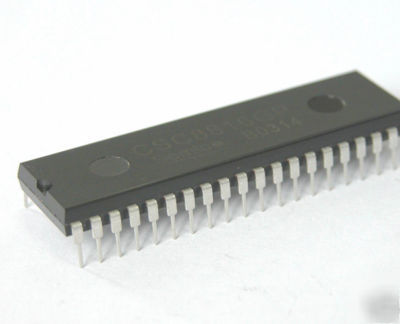

Qty: 2 TC7129 / ICL7129 40 pin DIP
4-1/2 digit Digital Panel Meter Chip
Display Analog-to-Digital Converter with On-Chip LCD Drivers
The traditional dual-slope method of A/D conversion has been enhanced with a successive integration technique to produce readings accurate to better than 0.005% of full scale, and resolution down to 10 V per count. The TC7129 includes features important to multimeter applications.It detects and indicates low-battery condition. A continuity output drives an annunciator on the display, and can be used with an external driver to sound an audible alarm.Overrange and underrange outputs and a range-change input provide the ability to create auto-ranging instruments.
Can also use LED displays by adding appropriate level shifting and buffering on outputs
Resolution on 200 mV Scale: 10 uV
True Differential Input and Reference
Low Power Consumption: 500 uA at 9V
Direct LCD Driver for 4-1/2 Digits, Decimal Points, Low Battery Indicator, and Continuity Indicator
Overrange and Underrange Outputs
High Common Mode Rejection Ratio: 110 dB
External Phase Compensation Not Required
