Carrier 3V 33ZCT59SPT space temp sensor lcd ddc ccn
Carrier 3V 33ZCT59SPT Space Temp Sensor LCD DDC CCN

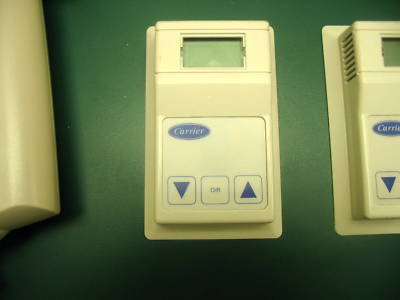

The T-59 Space Temperature Sensor with Override and Setpoint Adjustment is a wall-mount sensor for use with the Carrier Zoning system. The sensor contains a custom Liquid Crystal Display (LCD) that indicates room temperature and setpoint offset. The sensor also features an override button and temperature offset adjustment provided for control of features in the device to which the sensor is connected. Field programmable options include temperature display in F or C, temperature adjustment, setpoint display range, and setpoint lockout.
The wall sensor typically is used with the Carrier Zoning system for temperature sensing, remote timed override, and setpoint bias adjustment. The T-59 Space Temperature Sensor provides the following:
Electronic measurement of space temperature
Occupancy override by pushing the override button
The Tenant Billing Option, a Carrier product that tracks a tenant's after-hours usage of a Carrier communicating network system, can be used in conjunction with Carrier controllers to keep track of timed overrides initiated with the T-59 Space Temperature Sensor.
Single unit user interface operation
Space temperature display from on-board thermistor
Ability to program setpoint or setpoint offset display to match controller
