New 1 codewriter model 4102 bar code printer

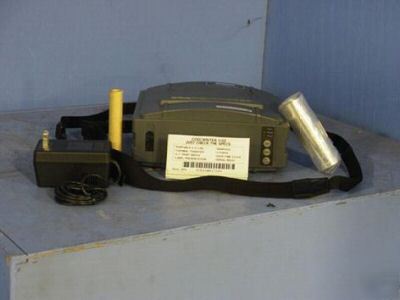

ACCESSORIES INCLUDE; 2 BATTER PACK, CARRYING STRAP, BATTERY CHARGER AND PAPER
ALSO INCLUDES A OPERATIONS AND PROGRAMMING MANUAL
The code writer 4102 is a portable thermal/thermal transfer label printer designed for the bar code industry. Its light weight and intelligent interface offer the ability to create many kinds of formats while connected on-line to a PC or hand held device.
- Thermal/thermal transfer operation
- Extremely high dot density (203 dots/inch or 8 dots/mm)
- User selectable bar code ratios and heights
- Label presentation mode standard
- Easy load label and ribbon assembly
- Print Head temperatures software selectable
- English and metric label conversions
- Print speed: up to 2 inches per second
- CPU 16 bit microcomputer (NEC V35)
- Memory standard 512K RAM 512K ROM
- Thermal Head Print width = 4.10" Dot density = 8 dots/mm, 203 DPI
- Print Speed 2 inches per second
- Weight Less than 5 pounds (1.80 Kg) with battery
- Battery Ni-Cad rechargable (DC 12V 1200MAH)
- Battery life 1000 inches label length (4X1 label)
- Material Direct thermal paper or Thermal transfer paper with ribbon
- Type Roll-fed label or paper
- Max Media width 115 mm or 4.5"
- Min. media width 32mm or 1.25"
- Thickness 0.16 mm or less for roll
Normal/Robust XON/XOFF CTS/DTR Handshake Baud Rate 300 to 38,400 Programable 7 or 8 Data bits
