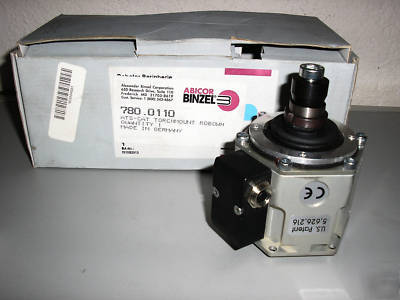

New abicor binzel 780.0110 ats-cat torch mount for wh
ROBO ATS-CAT Welding Torch/Tool Mount
Dimensions: Corner width, 2.95 ( 75mm)
Weight: Approximate 1.76lbs. (including adapter flange)
Release Force: See the following
* In X- and Y-plane, 10 - 14
* In Z-plane, 0.16 - 0.31 (4-8mm) (0.16 - 0.31 )
* Deviation through X-and Y-direction, minimum 1.5
* Deviation in Z-direction 0.02 - 0.04 (0.5-1mm)
* <+/-0.004 (0.1mm) at 11.81 (300mm) stand-off from robot flange
