Teach pendant mecs sb-700 / dynax fics-RT1 cnc robotics
Teach pendant MECS SB-700 / DYNAX Fics-RT1 CNC Robotics

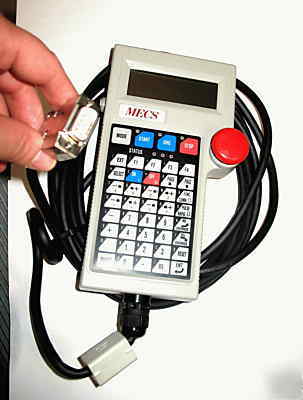

For sale MECS SB-700 / DYNAX Fics-RT1 teach pendant model M5AX-51D. This a very popular pendant used by many robotics products and labeled in many different ways but these are made by Dynax and are internally labeld Fics-RT1 V2 as you can see from the included picture.
Very nice teach pendant for a robot, CNC, router or any 4 axis (X,Y,Z and Theta) automation project. I got it with a small lot of automation items I have bought and I am selling the extra one.
I am currently integrating one these into my CNC setup and it is really easy to do. The pictures shows one of them connected to a Widnows machine through a serial port with added 5V power connection. Windows Terminal serial COM port is set to 9600 baud 8 bit data no parity 1 stop bit and VT100 emulation. I could send messages to the LCD display and move cursor around with cursor keys, manual has other ESCape sequeneces as well as key press and release codes described.
- Keypad 5 x 8 + 4 mechanical key switches
- Display 4 row x 20 character LCD display
- Emergency Stop Switch Mushroom style, push-lock type switch
- Communication Interface RS232C Max 19200 bps
- Power Supply DC5V: 220mA max - Working Temperature 08C to 408C
- 2 meter long cable with 9 pin D-Sub connector (see the pin-out in the picture)
Item is used in very good condition (some scuffs on the case) and guranteed not to be DOA.
