#10407 - 10"/20" x 40" kellenberger univ. cyl. grinder

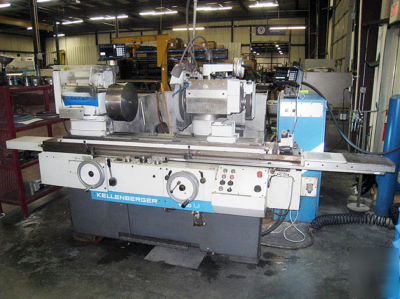

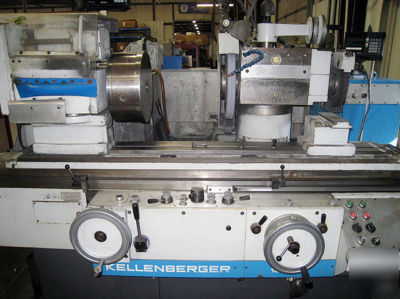

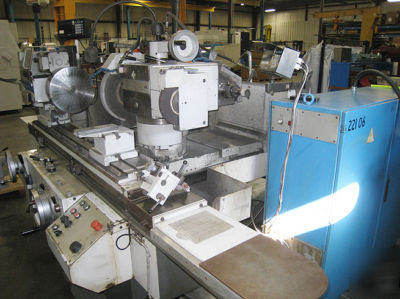

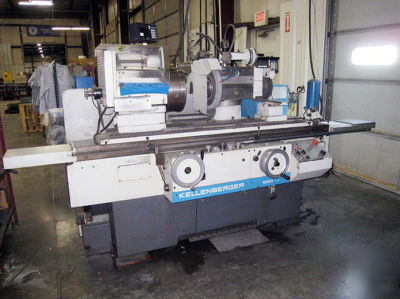

10"/20" x 40" KELLENBERGER MODEL 1000U SUPER PRECISION UNIVERSAL CYLINDRICAL GRINDER
Distance between centers 39-3/4"
Height of centers with risers 10"
Table speeds (Infinitely Variable) .06 - 18 FPM
Finefeed (Position by Handwheel - 1 Rev) .04"
Coarsefeed (Position by Handwheel - 1 Rev) 3"
Grinding wheel - Standard 16" x 2" x 6"
Rapid traverse of wheel side 1-9/16"
Spindle speeds 1500-1700-2200 RPM
Internal spindle speed 17,000 RPM
Face grinding wheel - standard 12" x 1-1/2" x 5"
Steady rest capacity (Max.) 4-59/64"
Back rest capacity 3/16 - 3-3/16"
1.25 HP DC Servo Variable Speed Workhead Motor and Controls

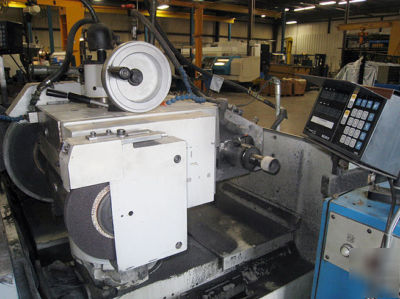

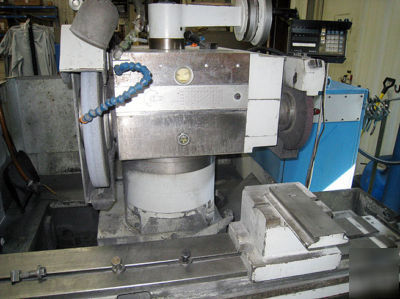

270 deg. Swivel Wheelhead with rear mounted internal grinding spindle
Wheel guard and 3-Jaw opening type steady rest
Variable sparkout timer Pickfeed

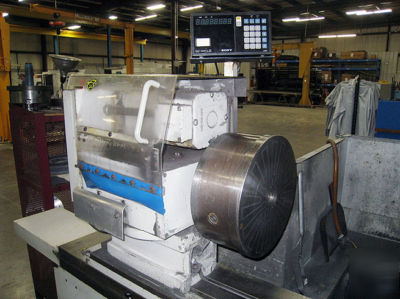

Combo live/dead variable speed motorized workhead

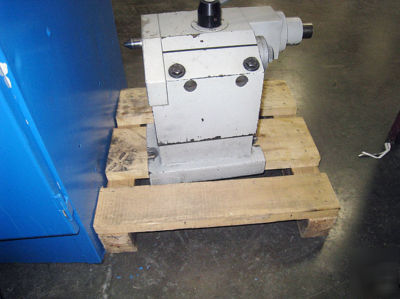

Tailstock with dresser and hydraulic quill retraction by foor treadle
Microfeed on wheelhead handwheel
Removable 5" Riser Blocks for tailstock, workhead, wheelhead and table fixtures
