Brk first alert smoke detector (model 9120B) lot of 6
with 9V Battery Backup (9120B)
Dual Ionization sensing chamber. Generally more effective at detecting small particles produced by flaming fires.
Sources may include paper or kitchen grease.
Remembers which unit initiated an alarm.
Helps reduce the number of nonemergency or nuisance alarms.
One touch button combines both features
Pins are provided to lock battery drawer and/ or alarm to base. Great
for apartment, dormitory or hotel applications where unauthorized
removal of battery or alarm is not desired.

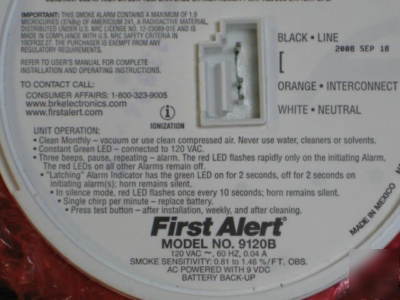

The BRK Brands, Inc. Cat. Nos. 9120 and 9120B are wire-in, 120V AC 60Hz single and/or multiple station smoke alarms specifically designed for residential and institutional applications including sleeping rooms of hospitals, hotels, motels,
dormitories and other multi-family dwellings as defined in standard NFPA 101. Models 9120 and 9120B comply with UL217, CSFM, NFPA 72, HUD, FHA and other agencies that model their codes after the above agencies. They meet building codes where AC and AC/DC with Silence smoke alarms are required. The alarms are interconnectable with up to 18 devices, of which 12 can be smoke alarms.
The BRK 9120 Series alarms feature a dual ionization smoke sensing chamber - screened for insect protection, an 85dB horn, 9V battery back-up (all versions except model 9120) and a silence feature. The Smart Technology system is designed to reduce nuisance alarms. Latching Alarm Indication remembers which unit initiated an alarm. When interconnected in
a series, the unit that triggered the alarm rapidly flashes its red LED indicator. After the alarm condition subsides, the initiating unit will store in memory or latch the information and begin to flash the green LED indicator 2 seconds on, 2 seconds off. The Perfect Mount system features a gasketless base and a mounting bracket that keeps the alarm secure over a wide
rotation range to allow for true alignment. This will allow fine-tuning on the positioning to compensate for out of aligned wall studs and to keep the wording level when wall mounting. A Single button test/silence button eliminates confusion. Depending on what mode the alarm is in, pushing the button will test, silence, re-test the alarm when in silence and clear the

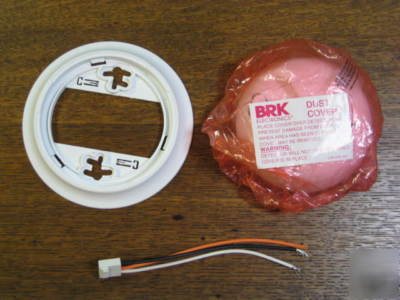

latching feature. Battery installation and removal can occur while the unit is mounted to the ceiling or wall via the side load battery compartment. Other Contractor Preferred features include a dust cover to keep alarm clean during construction, keyhole slots in the mounting bracket eliminate the need to remove the electrical box screws for installation. Two locking features are provided to prevent battery theft and/or theft of the unit. Connection to AC power is made with a Quick-Connect wiring harness. Installation is quick, easy and cost effective.
120V AC 60Hz w/ 9V battery backup (9120B only)
10% to 90% relative humidity (RH)
Electronically simulates the smoke condition, causing the unit to alarm
Up to 18 units of First Alert or BRK Smoke, CO and Heat Alarms. Maximum of 12 smoke alarms. See user s manual for details.
DC Power: Intermittent Red LED (9120B only)
Local Alarm: Red LED flashes rapidly
Red LED out Latching Alarm: Red LED flashes every 5 seconds after local alarm stops
