Collins 479S-6A vor ils nav signal generator fresh cal

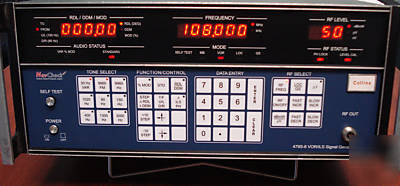

Collins 479S-6A ILS/Navigation Avionics Signal Generator

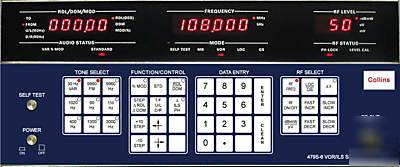

Includes NavCheck Avionics Front Panel/Keypad Retrofit
This is a fully-loaded "Option 003" model which includes:
* REMOTE TUNE (ARINC 410 "2-of-5")
If you are not familiar with these generators, they are of precision and durable Collins quality and have the reputation as being one of the most accurate and stable avionics generators available.
The 479S-6A VOR/ILS Signal Generator has all the capabilities required to test and troubleshoot VOR, ILS, and Marker Beacon navigation receivers as well as VHF Communications radios in one, easy-to-use, solid-state instrument!
The ARINC 410 ("2-of-5") Remote Tune option (included) provides the capability of automatic channeling of the receiver under test which can really reduce setup time.
The IEEE-488 (GPIB) Interface allows for complete remote control of each function. A must for automatic testing (ATE).
SPECIFICATIONS (partial list - More specs can be found HERE.)
* Marker Beacon: 75MHz 0.4 MHz
* Glideslope: 329 to 335 MHz
* Selectable VOR radials from 000.00 to 359.99 in 0.01 increments
* 1020Hz audio tone for CW identification signal
* Auxiliary Audio: 30 Hz to 14 kHz (0.1 Hz steps)
* Variable RF output: 6 to -120 dBm
For more information about our Collins 479S-6A Panel/Keypad retrofit, please visit the NavCheck Avionics website.
