Smt smd to dil 8 msop 8 tssop 8 pcb surface mount

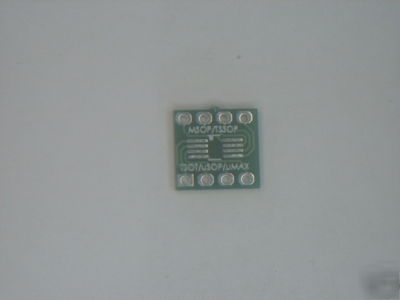

Converts a standard MSOP 8 TSSOP 8 IC to 0.3" wide Dual In-Line at 0.1" pitch format.
This adaptor has a ground plane under the IC, which can be seperatley earthed to your breadboard via a flying lead which you solder on. By removing the solder mask, which is over the earth plane in the area under the chip, you can solder to an exposed pad for heat sinking and earthing purposes.
