Thompson hvy-duty hyd horiz-spdl surf grinder #24259

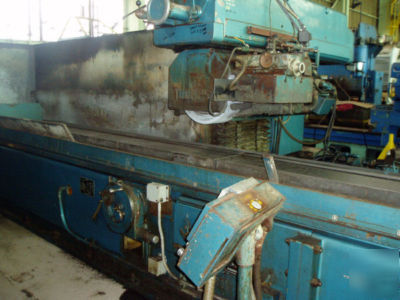

20" x 240" THOMPSON "CH" HEAVY-DUTY HYDRAULIC
New 1966, Serial No. 20CH667243, Model CH
(4) 12" x 60" (240") Electro-Magnetic Chucks
Travatrol Electonic Cross Feed Reversal
Incremental Power Down Feed w/Micometer Back-Up Stop
Heaviest Square Type Saddle Construction
Hydraulic Head-Mounted Wheel Dresser
Table Working Surface, W x L........... 20" x 240"
Height Under 20" Grinding Wheel........ 28"
Longitudinal Table Travel, Maximum..... 268"
Grinding Wheel, Maximum Diameter....... 20"
Grinding Wheel, Widths................. 6"
Grinding, Hole Diameter................ 12"
Grinding Wheel Speed, Feet Per Minute.. 6000 FPM
Incremental Down Feeds, Range.......... .0002 to .004 IPR
Longitudinal Table Feeds, Range........ 10 to 100 FPM
Grinding Wheel Spindle Motor........... 30 HP
Overall Dimensions, L x D.............. 44' x 8'8"
Weight, Approximately.................. 65000 LBS.
Face Swilveling Chuck Which Would Make This Machine
Even More Versatile In The Knife Industry. Our Stock
PRICE: F.O.B. OUR WAREHOUSE............ $69,500.00
