Used- g.h. hicks and sons bench scale reactor, 20 gallo
Used- G.H. Hicks and Sons Bench Scale Reactor, 20 gallo

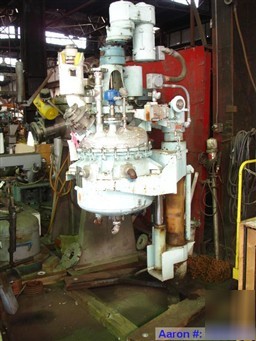

Used- G.H. Hicks and Sons Bench Scale Reactor, 20 gallon, stainless steel. Approximately 18'' diameter x 18'' straight side, dished bolt on top, dished bottom. Internal rated 70 psi and FV at 325 deg F, stainless steel jacket rated 90 psi at 325 deg F. 6 blade disc turbine driven by a 1 hp, 3/60/230/460 volt, 1725 rpm xp vari-speed motor, ratio 26 to 1, output rpm 216/1994. (2) sidewall baffles, manual hydraulic lower/raise. Mounted on a frame. Serial #571036, National Board #560, built 1971.
