100KG100KW tilt induction smelter metal casting furnace

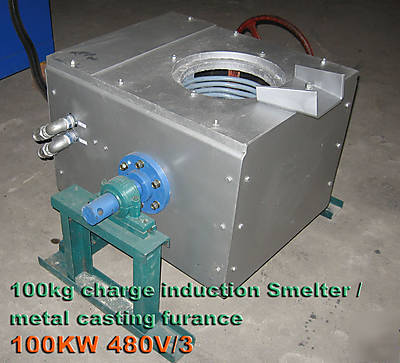

100kg 100Kw tilt induction heat Smelter metal casting furnace
If you are setting up to do casting work on brass, steel, iron, aluminum, do not miss this fine industrial grade furnace. This furnace is for serious metal work, it can melt near all possible metal all your typical casting metal ( typical 1500C up to 2000C, graphite crucible). If your shop cast brass, steel etc parts, this will be a very convenient way to set up the work, no more gas burner.
* High efficiency, clean electrical power ( 3 phase 480V, 160A), quick heat up cycle.
* 100kg charge capacity with electrical tile control (motor drive) or hand wheel drive
* Temperature: depend on the material and the crucible ( not included), typical

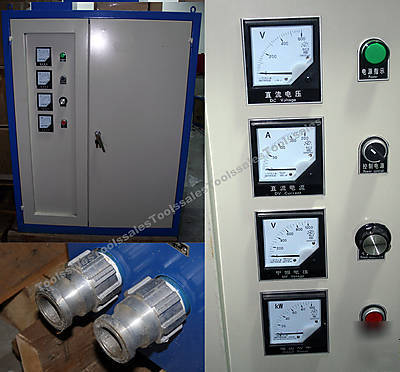

* Separate cabinet power supply unit , required water cooling ( 15 cu meter water pool or heat exchange capable for 45000 Kcal/h)
* Design for 28 cm crucible x 48cm height , weight 60Kg each
* Mid-frequency (2KHz) induction heating.
* Stainless steel screw and brass + solid aluminum chassis construction. Avoid rust and non-magnetic reduce the energy waste or pick up by the coil.
* All component install on the bakelite board, instead of the chassis, which avoid the high voltage leakage.
* 100Kg/100kW maximum power, /480V 3 phase power/160A, 2KHz +/- 20%, microcomputer control zero-cross start, over load, current protection,
* Head unit size is 120 x 120 x 12 cm, 400kg, power supply 150 x 130 x 60 cm 350kg, total system weight 750kg.
* 100kg weight volume is based on steel.
* included material to fix the crucible.
