Datalogic psc topgun handheld computer 34 key 128K

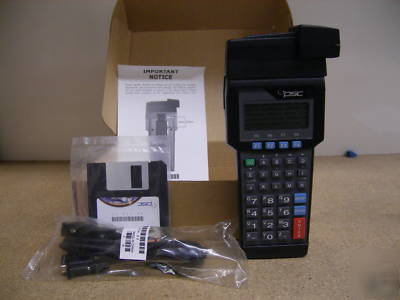

* Accessories include: Data cable, and Floppy disk Driver.
TopGun : Portable Scanning and Data Collection Scanning bar codes on flat, curved, or irregular surfaces at distances from 2.5 to 36.0" / 6.0 to 91.0 cm is easy with TopGun . It s rugged one-handed design gives you durability, reliable performance, and freedom of movement, even in the most demanding industrial work environments. TopGun consists of a PT 2000 portable data collection terminal integrated with a TopGun laser module. Weighing 16 oz. / 480 g, including three AA batteries, TopGun is lightweight and easy to use. It operates like any other handheld laser just aim it and pull the trigger. TopGun s balanced, ergonomic design quickly adapts for either right- or lefthanded use. The unique modular construction of the TopGun laser module allows you to upgrade your existing PT 2000 in seconds! LEDs located on the back of the scan head indicate laser activation and good reads. An audible tone also indicates scanning success.
TopGun is a cost-effective integrated laser scanning solution. It provides all the features of the PT 2000 and the convenience of one-handed, portable scanning combined with the speed and accuracy of laser input. Add the PT Dock for data transfer and battery recharging and you have the answer to all your portable needs. PT Dock Designed specifically for use with the PT 2000 or TopGun , the PT Dock provides a connection between your PSC portable and your computer without sacrificing the convenience of portability. The PT Dock allows you to transmit data to and from your host system, using serial or keyboard wedge communications. The PT Dock also recharges your NiCad battery pack and lithium backup battery.
Multiple 4 / 1.2 m drops to concrete
Standard 15-pin D-sub connector Serial (requires serial cable): RS-232C; ASCII 7- or 8-bit; Selectable Parity; 300 to 76,800 baud programmable; Supports CTS/RTS and Xon/Xoff
Keyboard Wedge (requires wedge cables): AT interface; PS/2 interface
16-bit CMOS Microprocessor; Real-time Clock and Calendar
Autodiscriminates between UPC A, E / EAN 8, 13 / JAN 8, 13 (extensions); Code 128; Interleaved 2 of 5; Code 39; Code 39 Full ASCII; Code 93; Codabar
Dual LED; Indicates battery charge or unit properly seated in dock
Artificial Light: 450 ft-candles / 4,844 lux
Sunlight: 8000 ft-candles / 86,112 lux
36 4 scans/sec. nominal36 4 scans/sec. nominal
650nm Visible Laser Diode (VLD)
Software programmable speaker volume, duration, and pitch
Standard 25-pin D-sub connectorSerial (requires serial cable): RS-232C; ASCII 7- or 8-bit; Selectable Parity; 300 to 76,800 baud programmable; Supports CTS/RTS and Xon/XoffKeyboard Wedge (requires wedge cables): AT interface; PS/2 interface; IBM 3151, 3471, 3472, 3476, 3477 terminalsProtocols: ACK/NAK with drivers for MS-DOS; X Modem; Carriage return only
Supports programs generated with PSC Program Generator (PPG); Supports floating point math (decimal and exponential notation up to 12 digits); Supports wildcard field search and verification
Length: 6.1" / 155 mmWidth: 6.0" / 153 mmHeight: 4.3" / 110 mm
24 oz / 720 g (w/o power supply)
34 splash-resistant keys with full alphanumeric capability; Four programmable function keysq
16 oz / 480 g (with batteries)
4 lines x 16 characters supertwist LCD
2.9" / 74 mm; 4.0" / 102 mm (maximum)
Industrial, high-strength polycarbonate/blend plastic, chemical and splash resistant
Nicad rechargeable battery pack. Rechargeable lithium backup battery protects RAM and real time clock; Low battery message and programmable automatic shutdown PT Dock: 110-volt power supply; 220-volt power supply.Nicad and internal lithium backup batteries are recharged in the unit; Power supply is not needed when using the PT Dock as a wedge
Power supply purchased separately
