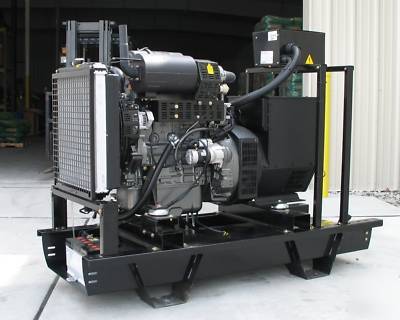

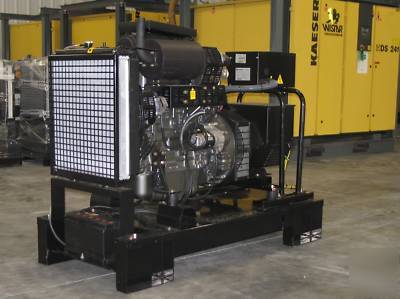

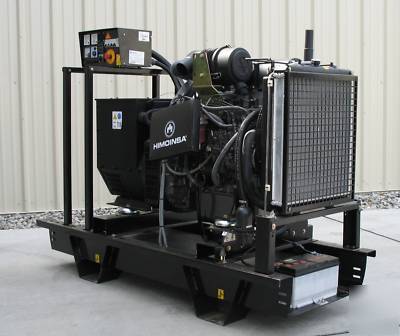

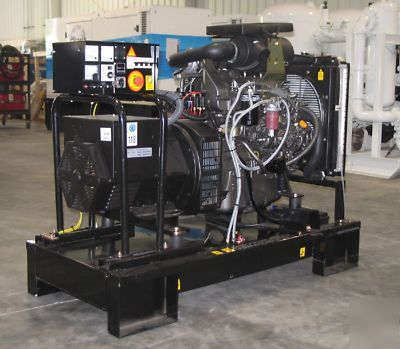

Himoinsa yanmar diesel generator 40 kw prime
This unit is currently configured for 3 phase 208v which can be configured up to 230v or converted to 1 phase as well.
Ratings listed below are for single phase, at three phase the unit will be a 44kw prime.
Open Type Set Accessories Available for HYW-45 M6
Skid with integral day fuel tank (non-UL) Mechanical Accessories Offered
HIPOWER digital auto-start control panel (Page 4)
Road towing trailers to DOT standards
Dry-type replaceable element air-cleaner
Critical grade exhaust mufflers
Battery, battery rack, and cables
Fuel and lubrication oil replaceable element filters
Flexible exhaust connection for open sets
Stamford AVR brushless 12-wire reconnectable alternator
Oil pressure and engine temperature gauges
Vibration Isolators between base and set assembly
Extended warranty coverage period
Main Line Circuit Breaker for overload protection
Belt driven charging alternator Generator End Accessories Offered
Guards for shielding all rotating parts
Anti-condensation heaters in alternator
Fuel cut-off solenoid and protection switches
Radiator with pusher fan Electrical and Control Accessories Offered
Operation and installation manuals
Automatic battery chargers 1.5 and 6 amp
NFPA 110 controls and remote annunciator
Fully sound attenuated enclosure (equipped as open set)
Transfer switch and paralleling control panels
Powder Painted with finish that exceeds 1000-hr salt test
Remote control from PC via hard and/or wireless link
Rock wool insulation behind protective barrier
Curved edges and minimum outside fasteners

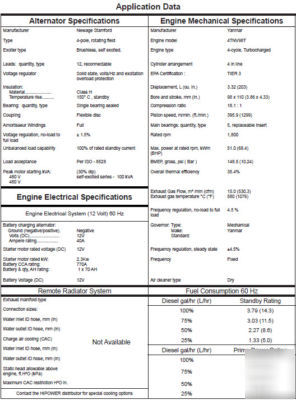

Alternator Voltage Ph Hz kW/kVA Amps kW/kVA Amps
BCI 184J Wdng 06 120 / 240 1 60 40.0 / 40.0 166 36.4 / 36.4 152
