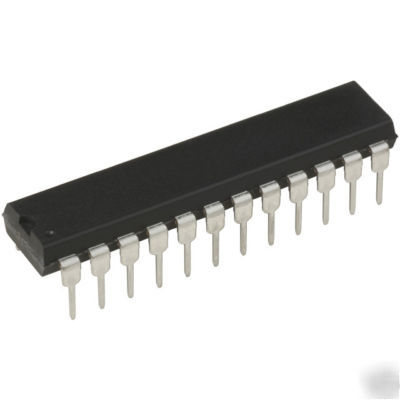

Ic chips: 74F543SPC 8-bit octal registered transceiver
- Back-to-back registers for storage
- Separate controls for data flow in each direction
- The F543 octal transceiver contains two sets of D-type
latches for temporary storage of data flowing in either
- Separate Latch Enable and Output Enable inputs
are provided for each register to permit independent control of inputting and outputting in either direction of data flow.
- The A outputs are guaranteed to sink 24 mA while the
B outputs are rated for 64 mA.
