Mueller 1000 liter buffer tank 316 stainless

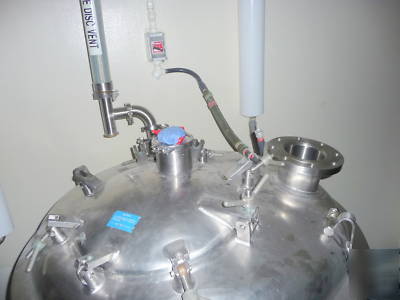

Mueller 1000 Liter Buffer Tank 316 Stainless
* Temp-Plate 18 Ga. 304 on .1874 Min. 316L
* Heads: Top:.1874 Min. 316L ASME F&D
* Inner Btm: .1874 Min. 316L ASME F&D
* Outer Btm: #14 GA 304 STD F&D
* Insulation: 2" Kode 25 CPR9525
* 47" Dia. x 37" Straight Side
* 1 1/2" & 1" Inlet and Outlet & Various other openings
* Copy of Orgininal Drawings
* Temp-Plate and Vessel Design Temp. 300
* Design Press. PSIG: 75 Temp-Plate / 50 Vessel
* Design Vacuum IN. HG. : 0 Temp-Plate / FULL Vessel
* Hyrdrostatic Test PSIG: 128 Temp-Plate / 75 Vessel

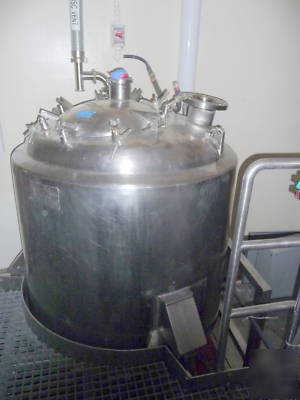

Very clean and in excellent condition. Currently installed at pharmaceutical plant in Los Angeles, CA. Can schedule appointment to view up request.
