New est 3.5" lcd monitor cctv camera video test / tester
TFT-LCD Monitor / PTZ Controller / Video signal generator / UTP cable tester
The STest-893 is developed for the installation and maintenance of video monitoring system. It can be used for displaying video, controlling PTZ, generating images, capturing data of RS485 and testing LAN cable etc. Its functions, easy operation, and convenient portability enable it simple for the contractor to install and maintain the video camera, promote working efficiency and cost-down the expenditure of the project.
*3.5"TFT-LCD , 960 H 240V resolution
*DC12V power output to power for cameras
*Audio testing function:test the normal operation for the sound of front-end audio equipments.
*Colorbar Video signal generator, transmit/receive colorful images
*Adjustable brightness, contrast, color of LCD
*Powerful in testing LAN cable, measuring the connecting status displaying the sequence of connection and display the NO. of the LAN cable.
*Automatically identify and adapt the video mode of NTSC and PAL
*Support RS232 and RS485 interface, the rate of transportation adjustable
*Support more than ten kinds of PTZ controller protocols. For example, PELCO-P, PELCO-D, SAMSUNG etc.
*Capture the PTZ protocol to assist the setting personnel to find out the control protocol and therefore easily target the problematic equipment.
*PTZ(P/L & Zoom) Control: Control the status of P/L, zoom in/out the camera, adjust the aperture, foci and setting parameters, run and call the preset.
*Lithium Ion Polymer Batteries(3.7V DC2800mAh), more reliable, and work 12 hours

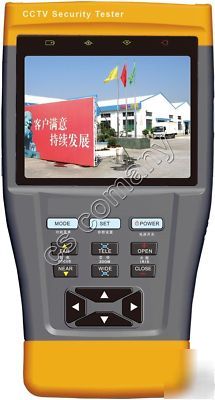

STest-893 CCTV Security Tester
Send out a volumn of 750mA direct electricity in 12v ,be able to supply temporary-working electric power for video camera
End in a series of sond frequency signal,to test the sound is normal or not.
Pelco-D, Pelco-P; Samsung, Panasonic, LiLin or customized
1 pcs Lithium Ion Polymer Batteries, 3.7V DC2800mAh
4 hours recharging time, work for 12 hours
