New hid ballast kit metal halide 250W 120/208/240/277
HID Ballast Kit, Metal Halide, 250W
HID Ballast, Core and Coil, Metal Halide Lamp Type, Number of Lamps 1, 250 Lamp Watts, M58 ANSI Code, 286 Input Watts, 120/208/240/277 Input Voltage, 60 Hz, 2.3 Operating Amps @ 120V, 1.4 Operating Amps @ 208V, 1.2 Operating Amps @ 240V, 1 Operating Amps @ 277V, Insulation Class H, Min. Starting Temp. -20 F, Length 3.93 In., Width 4.4 In., Height 2.81 In., Includes Capacitor, Core and Coil, Mounting Bracket and Hardware

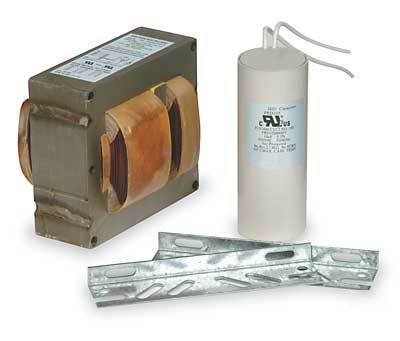

Capacitor, Core and Coil, Mounting Bracket and Hardware
* HID Core and Coil Ballast Kits
* Ballasts are vacuum impregnated to help eliminate premature failure and voltage breakdown, for longer life and quieter operation.
* Kits are compatible with most fixture designs. Include: capacitor, core and coil, igniter (where applicable), mounting bracket, and hardware. No live parts for safety. Use only capacitor and igniter included with kit. Pulse Start-These metal halide lamps have no starting electrodes, and an open circuit voltage (OCV) of approximately 2 times the lamp voltage. Lamps have an igniter that provides a high voltage starting pulse directly across the main electrodes. When the lamp s arc is established, the igniter stops delivering pulses and the lamp comes up to full brightness. Probe Start-These metal halide lamps have an electrode located at 1 end of the arc tube to assist in lamp starting. Require an OCV of approximately 2 times the lamp voltage to start the arc.
