Phoenix csi 64 long throw spotlight CS164/1000/hr-360

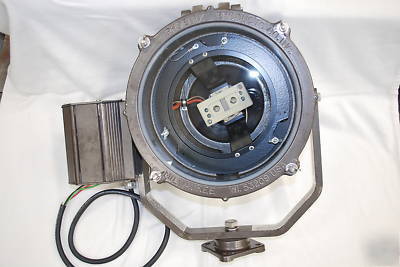

General: An outdoor architectural luminaire with a long throw spot-type distribution using CSI-type, PAR64,1000W metal halide lamp with a 6-degree beam spread. Bare lamp produces 1,350,000 CBCP with 6 beam angle (at peak intensity). A fully encapsulated electronic ignitor mounted to the side of the fixture is position insensitive, eliminating heat problems. Appropriate for architectural applications where superior color rendition and intensity are needed.
Copper-free, marine-rated aluminum housing for durability and long fixture life. Stainless steel external hardware.
Tempered-glass lens, 7/32" thick, withstands heat and shock.
PAR64, 1000W CSI Metal Halide lamp not included.
1/2" aluminum harp for rough environments.
1000W Metal Halide CSI ballast.
Fully encapsulated electronic ignitor does not require replacement following lamp change; ignitor built for years of service.
Side mounted ignitor allows fixture to be aimed at any angle without increasing heat on the ignitor.
Electronic ignitor has a consistent draw of voltage throughout life and does not wear, unlike spark gap ignitors that draw more voltage as the spark gap increases and wears out.
Very narrow beam angle (6-degree). Lamp provides 1,350,000 CBCP.
Textured polyester powder coat finish. Black, bronze, gray, white, silver and verde green options available. For custom colors, please contact factory.
UL Listed 1598-Marine Wet Location Outside Type (Saltwater), Suitable for mounting within 4' of ground. For use in Canada cUL Indoor/
Outdoor 4X Listed. Internationally rated IP66.
For more information please go to Phoenix website:
http:// /Products/Architectural/PerformanceFloodlights/CSILongThrowSpot.htm
