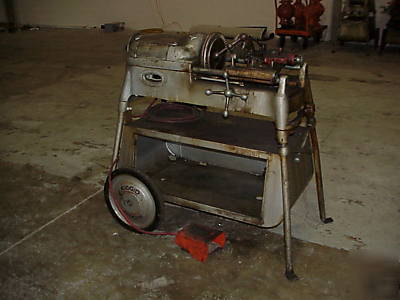

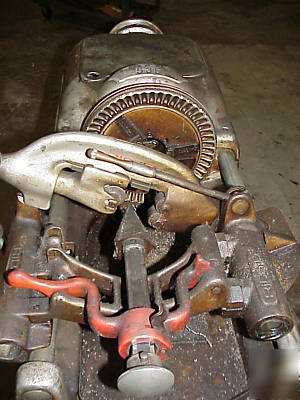

Ridgid - model 535 pipe threader w/ rigid cart
Pipe Capacity: 1/8" - 2" (3 mm - 50 mm) 2 " - 4" (62 mm - 100 mm), 4" - 6" (100 mm - 150 mm) with 141 and 161 Geared Threaders
Bolt Capacity: " -2" (6 mm -50 mm)
Motor: HP, single-phase, 115V, 25-60 Hz, 15 Amp Reversible Universal motor.
Switches: FOR/OFF/REV and Integral Safety Foot Switch
Chuck: Speed Chuck with replaceable rocker-action jaw inserts (3)
Rear Centering Device: Cam-action, turns with chuck
Cutters: Self-centering, full-floating. Standard. No. 820 Wheel-Type Cutter, pipe capacity 1/8" - 2" (3mm-50mm), bolt capacity " - 1" (6mm-25mm).
Spindle Speed: 36 RPM standard (no load), 54 RPM model also available
Reamer: 5-flute cone, RH, 1/8 "- 2" (3 mm - 50 mm)
Oil Pump: Self-priming gerotor oil pump.
