Worcester / flowserve series 34 pneumatic actuator

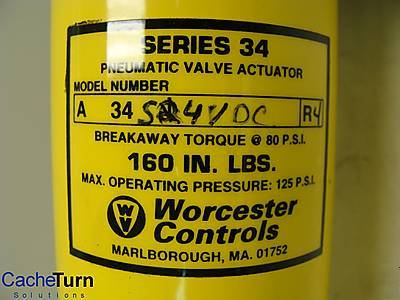

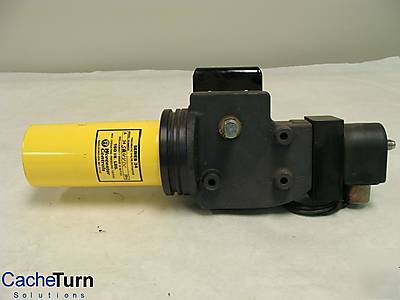

Worcester / Flowserve Series 34 Pneumatic Actuator
Worcester / Flowserve part number A34S24VDC
The Series 34 Pneumatic Actuator Provides Increased Productivity
Through Precise, Reliable On/Off Automated Control
The Worcester Controls Series 34 Pneumatic Actuator is the most
efficient actuator available, delivering tailored torque to provide
fast, smooth and positive operation through the full cycle.
Scotch Yoke linkage provides tailored torque.
Single external air and electrical connections on solenoid models.
Torque outputs to 1000 in-lb (113 N m) @ 100 psi. Air supply (7 kg/cm2).

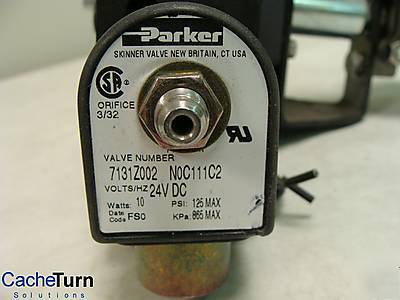

Built-in solenoid air pilot as standard.
Fail-safe spring-return options.
NEMA 1, 4, 4x, or 7 solenoids.
Limit switches for general purpose, watertight, or hazardous environments.
High-temperature option to 250 F (121 C) ambient.
More information available here: http:// /files/Files/Literature/FCD/pb-303-e.pdf
