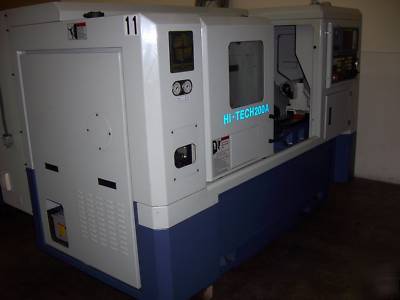

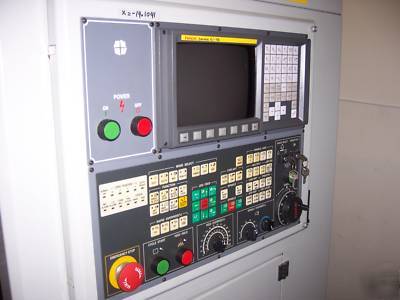

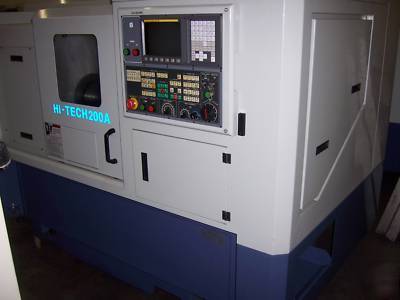

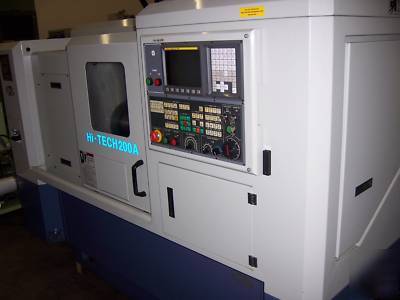

Nice hwacheon 2005 hi-tech 200 cnc turning center
The Hwacheon Hi-Tech 200A CNC Lathes were developed to meet today's demand for superior turning center performance. Its distinctive design allows the Hi-Tech 200A to have the largest work capacity and spindle horsepower in its class.
To insure that the base machine has the best possible foundation, the bed material is high quality, meehanite process cast iron, which has superior shock absorbing characteristics to withstand the forces of heavy-duty machining.

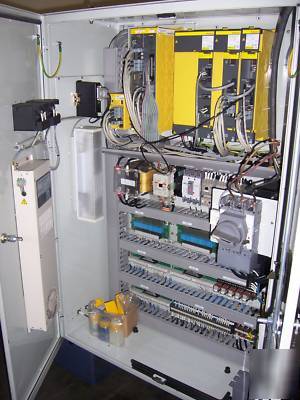

The precision-ground spindle is supported by a rigid headstock with grease-sealed, double-row cylindrical bearings, and angular-contact bearings at the front and double-row cylindrical bearings at the rear, thus keeping heat generation to a minimum. Spindle power is provided by a brushless, variable-speed AC motor, which is both energy efficient and maintenance free.

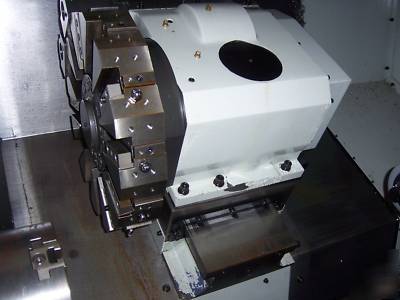

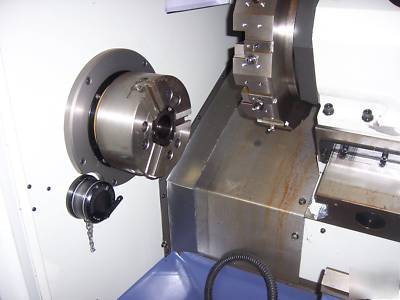

A versatile drum-type turret, servo indexed, hydraulically clamped, permitting heavy-duty cutting. The extremely quick indexing speed and bi-directional tool selection, by the shortest path, minimizes non-cutting time. Including the fast rapid traverse rates of both axes, the Hi-Tech 200A are one of the most productive turning centers on the market today.
Chip and Coolant Splash Guarding
12 Station Turret with Curvic Coupling

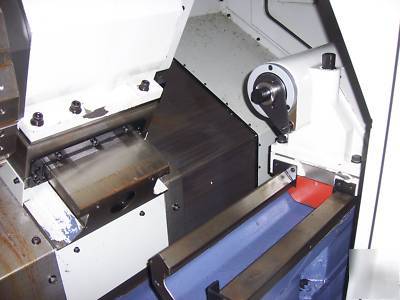

Hydraulic Tailstock with Programmable Quill
Foot Switch for Hydraulic Chuck and Tailstock
One (1) Set of Adjusting Tools and Foundation Kit
Hardened and Ground Slide Ways with Turcite Coating
8" Dia. Hydraulic Thru-Hole Power Chuck with one Set of Soft Jaws
Boring Bar Holders, Face Holder, Boring Bar Sleeves, Drill Sockets
Manual: Programming, Operating, Tooling, Maintenance
Maximum Turning Diameter - 13.8"
Maximum Turning Length - 15.7"
Spindle Horsepower (Cont/30 min) - 15/20 (A.C.)
Type of Turret ( Servo Index Motor / Non Lift Curvic Coupling ) - Drum
Index Time - 0.2 sec.per station
Boring Bar Maximum Diameter - 1.25"
Rapid Traverse Rate of X-Axis - 1181 IPM
Rapid Traverse Rate of Z-Axis - 1181 IPM
Positioning Accuracy of X-Axis - 0.0002"/4"
Positioning Accuracy of Z-Axis - 0.0003"/12"
Repeatability of X-Axis - + 0.00007"
Repeatability of Z-Axis - + 0.0001"
Floor Space: (W x L) - 66.5" x 91"
Total Power Required (220V) 30KVA - 60 AMP
