Reliance 40 hp dc shunt motor 500V tamagawa 800123-r

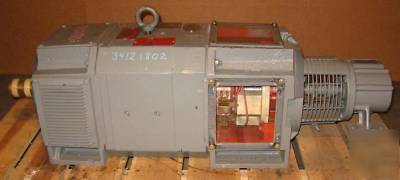

Reliance Electric number 01KA867260-TR DC Motor. This 40 HP motor operates on 500v (70A) with a 300v shunt and turns a 2-1/8" diameter x 4-1/4" long keyed shaft at 1750 / 2300 RPM with a max of 4500 RPM. Rated for continuous duty with a 1.0 service factor and SC2512ATZ frame. 5/8" diameter resolver shaft with Tamagawa BRX type 800123-R 26v 2400 Hz resolver (will separate). This motor was rebuilt by Reliance Electric. The commutator is clean, the brushes are new, the bearings are smooth, and clear inspection covers have been installed. The paint is spotty but otherwise it is in great shape. Appears just as shown in the photos.
