Skid-mount high pressure pump

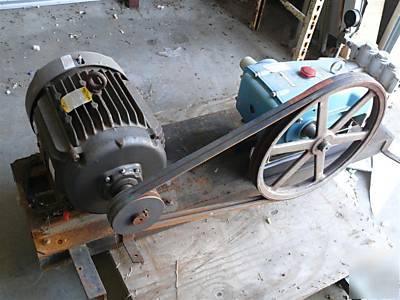

Skid Mounted High Pressure Pump
Assembled by Falcon Pump & Supply
This item is used, working condition is unknown. Please refer to photographs for condition of the unit. Contains a Baldor Industrial Motor Model M2333T (specifications below) and a CAT Pump Model 3520 (specifications below) both mounted on a steel skid.
Flow ...................................................................23 GPM (87 L/M)
Pressure Range ....................................100 to 2000 PSI (7 to 140 BAR)
Inlet Pressure Range ..........................Flooded to 70 PSI (Flooded to 4.9 BAR)
RPM.................................................................800 RPM (800 RPM)
Bore ......................................................................1.260" (32 mm)
Stroke ...................................................................1.890" (48 mm)
Crankcase Capacity ...........................................4.2 Qts. (4 L)
Maximum Liquid Temperature...............................160 F (71 C)
Above 130 F call CAT PUMPS for inlet conditions and elastomer recommendations.
Inlet Ports (2)...............................................1-1/2" NPTF (1-1/2 NPTF)
Flushing Ports (2) (3520C, 3521C) ................1/4" NPTF (1/4" NPTF)
Discharge Ports (2) ...........................................1" NPTF (1" NPTF)
Pulley Mounting.............................................Either Side (Either Side)
Shaft Diameter..................................................... 1.378" (35 mm)
Weight ................................................................139 lbs. (63 kg)
Dimensions (3520, 3520C,3527)...24.06 x 18.11 x 9.72" (611 x 460 x 247 mm)
Dimensions (3521 3521C).............24.13 x 18.11 x 9.72" (613 x 460 x 247 mm)
