Square d GJL36070 circuit breaker

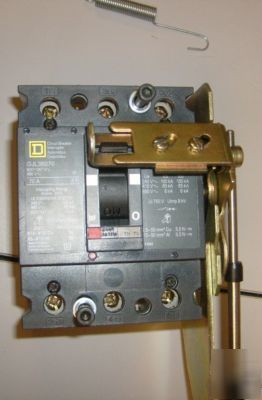

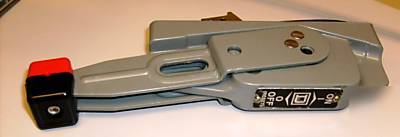

Square D GJL36070 Circuit Breaker and Square D Operating Mechanism 9422CGJ30
ADJUSTABLE TRIP, MOLDED CASE, THERMAL MAGNETIC; G FRAME; 600 STAR/347 VAC AT 50/60 HZ; 70 AMPERE AT 40 DEG C; 3 POLE; INTERRUPTING RATING 100 KILOAMPERE AT 240 VAC, 65 KILOAMPERE AT 480 VAC, 18 KILOAMPERE AT 600 STAR/347 VAC (UL, CSA); 65 KILOAMPERE AT 415/240 VAC (IEC); TERMINAL ALUMINUM/COPPER LINE LUG, LOAD LUG; SIZE 3.54 INCH W X 3.94 INCH D X 4.72 INCH H; APPROVAL UL, CSA; POWERPACT[R] BRAND; GJL MODEL; APPLICABLE STANDARD IEC; AC MAGNETIC TRIP SETTING 800 AMPERE HOLD, 1400 AMPERE TRIP; ICS RATING 65 KILOAMPERE AT 415/240 VAC

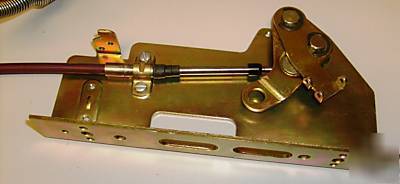

FLEXIBLE; SWITCH SIZE 100 AMPERE; 3 POLE; 36 INCH CABLE LENGTH; USED ON GJL SERIES CIRCUIT BREAKER; 9422 MODEL
