yellow jacket 49895 4V titan manifold solar w/ hoses

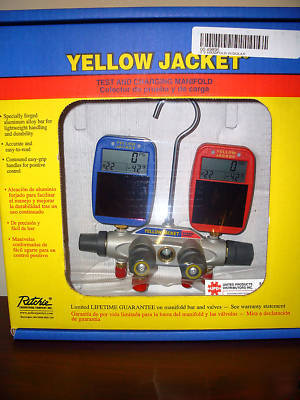

RITCHIE YELLOW JACKET 4-VALVE TITAN MANIFOLD WITH SOLAR-POWERED GAUGES
* Fourth hose to enable connection to hi/lo sides, refrigerant tank and recovery unit or vacuum pump for diagnostics, evacuation and charging without switching hoses.
* 3/8" Vacuum port for use with larger hose to cut evacuation time by up to 33% (all other fittings are 1/4")
* Large, easy-to-read 3-1/8" steel case red and blue, 1% accuracy (Class 1) gauges.
* Exclusive 100 mesh filter in-line on all flare fittings helps keep out particulate material and extend the life of the seats.
* Optional protective gauge boots available.
* Light-powered pressure gauges operate continuously, even in low light conditions. Eliminate battery replacement costs and loss of power during jobs.
* Automatic pressure-temperature readout for the above refrigerants.
* Calibrated to 1% accuracy.
* 1/8" NPT Male connection.
* Two second display response.
* PSI F, PSI C, bar C, and MPa C
* Lo-side pressure scale of 30 inHg vacuum to 350 psi.
* Hi-side pressure scale of 0 to 800 psig.
* Working temperature range from 32 to 122 degrees farenheit.
* The solar gauges will do the following refrigerants: R22, R134A, R404A, R407C, R410A, R427A, and R507.
