12' x 3/16" pacific 150-ton cnc hyd press brake #24076

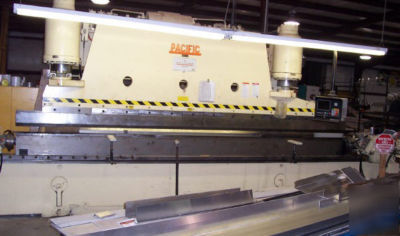

12' x 3/16" PACIFIC 150-TON CNC HYDRAULIC PRESS BRAKE
Rebuilt 1997, Serial No 2217, Model 150-14
Hurco Autobend 7 CNC Back Gauge
Cyril Bath Collet Type Stretcher Assembly (S/N 7034)
Tonnage Capacity......................... 150 TON
Distance Between Housings................ 12'
Overall Length Of Bed.................... 23'
Overall Length Of Ram.................... 14'
Bending Lenth, Maximum................... 14'
Bending Capacity......................... 12' x 3/16"
Die Length, Maximum...................... 147"
Die Length, Minimum...................... 12"
Stroke Length............................ 8"
Daylight Bed to Ram, Stroke Up........... 24"
Throat Depth............................. 9.5"
STRETCHER ASSEMBLY SPECIFICATIONS:
Collet Type Chuck Jaws................... 6"
Stroke Length, Each Side................. 23"
Pull-Off Angle, Free Floating............ +/-10-DEGREES
Distance Jaw Centerline to Table......... 7"
Distance Between Jaws, Maximum........... 168"
Distance Between Jaws, Minimum........... 0
NOTE: This Machine Was Completely Rebuilt With The
Cyril Bath Stretcher Assembly Attachment And Hurco
CNC Back-Gauge Added In 1997. Machine Appears To Be
PRICE: F.O.B. OUR WAREHOUSE.............. $34,500.00
