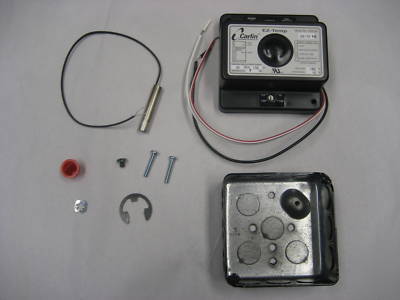

Carlin 90000B10S ez-temp temperature controller
CARLIN 90000B-10S EZ-TEMP TEMPERATURE CONTROL
Dual Limit Temperature Control
Operating and high limit action
Smart manual reset on high limit
2 sensors (operating and high limit)
1 contact - operating limit
120 vac Hot/Neutral: Red-white/white
Operating Limit In/Out: Black-green/black
High limit In/Out: Black-red/black-yellow
Operating Set Point: 90 - 130 degress Fahreneheit
Operating Differential: 8 degrees Fahrenheit
High Limit Set Point: 160 degrees Fahrenheit
High Limit Differential: 10 degrees Fahrenheit
