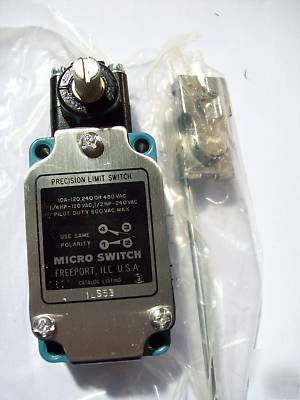

New micro switch compact limit switch #1LS53 in box
MICRO SWITCH COMPACT LIMIT SWITCH #1LS53
Operating Force (O.F.) 0.11 N m max. [1 in lb max.]
Full Overtravel Force 1.90 N m max. [1.4 in lb max.]
Release Force (R.F.) 0.02 N m min. [0.18 in lb min.]
Product Type MICRO SWITCH Compact Limit Switches
Circuitry 1NC 1NO SPDT Snap Action,
Supply Voltage 120 Vac. 240 Vac. 480 Vac
Housing Type Compact / Non Plug-In
Operating Temperature Range -29 C to 71 C [-20 F to 160 F]
Comment 5" (127mm) aluminum rod actuator; Low Pretravel and Operating Force
UNSPSC Commodity 302119 Switches and controls and relays
