> Bs-2 universal dividing head plates index swing 9-1/4"
Bs-2 universal dividing head plates index swing 9-1/4"

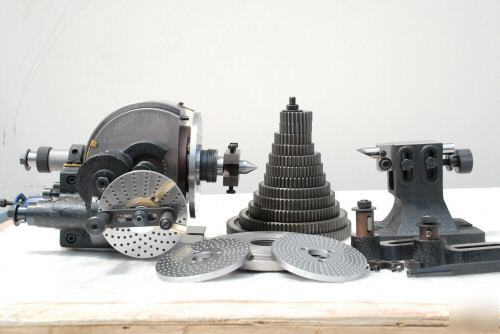

BS2 UNIVERSAL INDEXING DIVIDING HEAD & EXTRAS NEW
* For indexing and spiral cutting, divide any angle by the direct, indirect or differential methods
* threads on back plate: 2-1/4 x 8" TPI
* Use for easy indexing of divisions from 2 to 50 and most numbers from 52 to 380
* Features spiral machining capability
* Convenient swivel head locks at any angle from 10 below horizontal to 90 vertical
* Dividing head allows you to divide in any angle by the direct, indirect or differential method
* Hardened and ground spindle is rigidly held in a tapered seat by a draw-in nutApplications: A: 15-16-17-18-19-20, B: 21-2327-29-31-33, C: 37-39-41-43-47-49
* Hardened and ground worm provides easy adjustment of worm gear and disengages for direct indexing
* Ratio between worm and worm gear is 40:1
* Features threaded spindle nose and 24 hole dividing plate with easy conversion to fast, direct indexing on numbers 2, 3, 4, 6, 8, 12 and 24
* (1) Threading back plate for mounting chuck
* (1) Center and driving dog
For 202-2014 For indexing and spiral cutting. With same features and accessories as models above and includes a full set of gears. Note: this unit has 12 gears for sprial cutting and an arbor.
