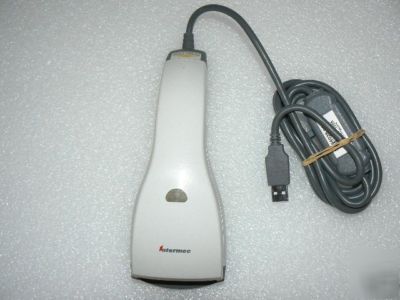

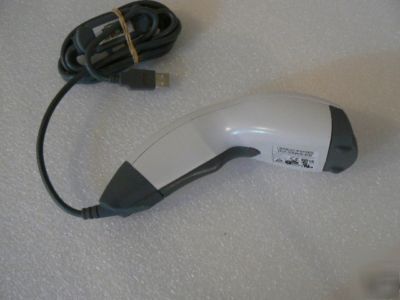

Intermec 1800SR usb barcode scanner 0-360039-01
INTERMEC SCANPLUS 1800 SR USB Barcode Scanner 0-360039-01
Compatible for contact and non-contact applications, the ScanPlus 1800 Series provides the flexibility your operation needs.
Lightweight and ergonomic the ScanPlus 1800 is comfortable to operate. Its sharp scan line makes aiming easy within acceptable levels of illumination to ensure worker safety. The ScanPlus 1800 is fast with a scan rate of up to 225 scans-sec. Utilizing a 49.2cm-19.4 depth of field the ScanPlus 1800 is great for reading long damaged poorly printed or small bar width barcodes under any light conditions. Intermec's ScanPlus 1800 incorporates no moving parts for a longer life than most scanners. The ScanPlus 1800 withstands multiple drops to concrete and extreme temperatures for reliability you can depend on. Use the ScanPlus 1800 for both contact and non-contact applications. Compatible with over 400 host interfaces the ScanPlus 1800 supports all standard 1D symbologies as well as PDF417. Future upgrades and applications are easy to implement with flash memory and configuration is easy with EasySet set up software.
Intermec ScanPlus 1800 Details
Intermec ScanPlus 1800 Handheld Scanner
The Intermec 1800 Series is a cost effective, yet full-featured supply chain solution for retail, office, healthcare and light industrial applications. Offering the flexibility of CCD or laser versions, the 1800 Series is a fast and accurate answer for your contact and non-contact scanning needs. For a wireless solution, see the Intermec 1800 Vista.
* Choice of scanning technologies: CCD or Laser
* Ergonomic, easy to pick up and use
* Fast reading and decoding of all barcodes; even damaged or poorly printed codes
* Single, universal interface. Cable provides for simple connectivity to PCs and hundreds of terminals
* Fastest ever setup using EasySet System software for Windows . Print and scan a barcode menu or download a configuration to flash memory
* Highly cost-efficient and flexible solution for retail, office, healthcare and light industrial applications
A flexible Solution Compatible for contact and non-contact applications, the Intermec ScanPlus 1800 Series provides the flexibility your operation needs by providing a choice of different scan engines. A universal host interface system allows the 1800 Series to be connected to many hundreds of PC s, cash registers, or other terminals simply by changing the cable and software set-up. Firmware upgrades or special applications are easily implemented using flash memory easily extending your solutions potential.
Performance You Can Depend On The 1800 Series incorporates no moving parts and as a result, it has a longer life than any laser scanner. The 1800 Series is also durable withstanding multiple drops to concrete from 1m (3.2ft) and wide temperature range operation.
Increased Productivity The Intermec ScanPlus 1800 succeeds in reading barcodes at 50cm (20in) distance with a scan rate of up to 400 scans per second. The 1800 s brightly illuminated scan line is sharp and bright for accurate positioning of the scanner. This results in quick response and easy aiming, making your workers more productive.
Optional Equipment Increase the functionality of the 1800 Series with your choice of scan engines. Also, an optional raised stand is available for easy, hands-free operation.
Physical Characteristics Length: 180 mm (7 ) Length Standard cable: 1.8 m (70 ) Width at handle: 33 mm (1.3 ) Width at head: 64 mm (2.5 ) Weight without cable: 1800 SR/PDF:145g (5.1 oz) Weight without cable: 1800 ST: 165g (5.8 oz) Case: high-impact ABS self-extinguishing plastic. Rubber end cap and boot.
Hardware Microprocessor: Custom chip (ASIC inc. DSP processor) for fast signal processing and decoding. Special routines for PDF 417. Interfaces: All scanners support (by choice of cable): Wand & Laser emulation, single or dual RS232, IBM 46xx, OCIA and PC AT/PS2 wedge to over 400 terminals and PCs. Extensive interface information on application
Barcode Symbologies All models: UPC E, A, EAN, Code 39; Interleaved, Matrix, Industrial and Standard 2 of 5; Code 128, UCC EAN 128, Codabar, Code 93, MSI, Plessey. 1800 PDF: PDF417
Scanning Performance Performance: 1800 SR and PDF Scan rate: 400 scans per sec. max (SR); 600 scans per sec. max (PDF) Minimum X dimension: 0.1 mm (4 mil) Depth of field*: 0 to 10 cm (4 ) depending on code: 0 .1 mm (4 mil): 0-2 cm (0-0.8 ) 0.254 mm (10 mil): 0-4 cm (0-1.6 ) 100% EAN /UPC: 0-5.5 cm (0-2.1 ) 0.38 mm (15 mil): 0-6 cm (0-2.4 ) 0.5mm (20 mil): 0-7 cm (0-2.7 ) 0.7 mm (27 mil): 0-10 cm (0-4 ) *Only applies to SR Model
PCR: 25% minimum Code Width: 12 cm (4 in.) max (X above .254 /10 mil) Skew: +- 65 Pitch: +- 70 Performance: 1800 ST Scan rate: 36 s/sec Minimum X dimension: 0.125 (5 mil) Depth of field: up to 50cm (20 ) depending on code: 0.125 mm (5 mil): 2.5-8 cm (1-3 ) 0.254 mm (10 mil): 0-20 cm (0-7.9 ) 100% EAN /UPC: 0-25 cm (0-10 ) 0.38 mm (15mil): 0-30 cm (0-12 ) 0.5 mm (20 mil): 0-50 cm (0-20 )
PCR: 25% minimum Code Width: Skew: +- 55 Pitch: +- 65
Barcode Scanning Module Options Setup options include EasySet PC Windows software, by direct connection, setup barcode printing (custom setup utility) or by conventional barcode setup manual.
Intermec ScanPlus 1800 Accessories Desk/vertical holder (standard) Raised hands-free stand (option)
Environment Operating Temperature: 0 to 40 C (32 to 104 F) Storage Temperature: -25 to 60 C (-13 to 140 F) Humidity: 10% to 90% non-condensing Drop Survival: withstands multiple drops of 1m (3.2 ft) to commercial flooring Regualtory Approvals 1800 ST only: US DHHS Standard 21 CFR 1040, 10 and 1040,11 (1994) as a Class II Laser product, IEC 825-1 (1993) & EN 60825-1 (1994) Class 2. All models: Complies with FCC Part 15, CE Directives 89/336/EEC, 72/23/EEC and Low Voltage Directive EN 60742 (1995).
Some approvals and features may vary by country and may change without notice. Please check with your local Intermec Intermec ScanPlus 1800 sales office for further information.
THESE RECENT OFF LEASE UNITS ARRIVE TO YOU CLEANED AND TESTED TO BE 100% FUNCTIONAL OR YOUR MONEY BACK. These look like new...excellent condition!!!
If you have any further questions, please email.
International orders welcome
* You can also arrange your own freight quote at
* 6.0 sales tax for Michigan State Residents.
* If you receive a wrong or defective item please contact us by e-mail within 3 business days from the date you receive the product.
* For products returned in accordance with this policy, you should receive replacement within 5-10 calendar days from the date we receive the merchandise.
* All products are subject to a 25% restock fee on all returns or wrongfully ordered items.
* Products received later than 7 days cannot be accepted for return, unless prior approved.
* We are not liable for incidental or consequential damages or claims
* All Server and Networking equipment comes with a standard 30 day replacement warranty. Unless otherwise noted.
* All Telecom equipment comes with a 90 day standard warranty. Unless otherwise noted.
* All warranty claims require an RMA # that you must obtain by calling us at 1-(***)-891-7330 before returning an item to us.
* Products received later than 7 days after an RMA has been issued, cannot be accepted for return.
