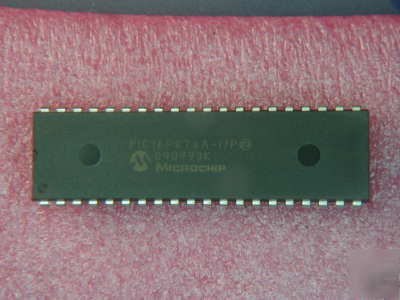

Pic 16F874A PIC16F874A i/p 8-bit cmos flash 40 dil
Operating speed: DC 20 MHz clock input DC 200 ns instruction cycle
Up to 8K x 14 words of Flash Program Memory, Up to 368 x 8 bytes of Data Memory (RAM), Up to 256 x 8 bytes of EEPROM Data Memory
Synchronous Serial Port (SSP) with SPI (Master mode) and I2C (Master/Slave)
Parallel Slave Port (PSP) 8 bits wide with external RD, WR and CS controls (40/44-pin only)
10-bit, up to 8-channel Analog-to-Digital Converter (A/D)
- Programmable on-chip voltage reference (VREF) module
- Programmable input multiplexing from device inputs and internal voltage reference
Low-power, high-speed Flash/EEPROM technology
