Staveley nortex 2000D eddy current flaw detector

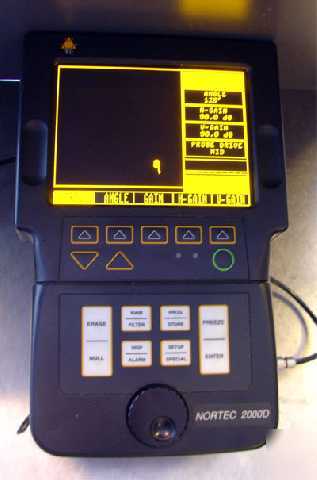

Staveley Nortech 2000D Portable Flaw Detector Eddy Current Olympus
The Nortec 2000D+ offers a frequency range of 50 Hz to 12 MHz for applications ranging from detection of cracks in tubes or structures to the discovery of minute flaws in aircraft materials. Single or dual frequency operation, easy to use digital conductivity, and rotating scanner support make the flaw detector ideal for numerous aerospace NDT applications.
At less than 4 lbs (1.8 Kg), the rugged Foreign Object Debris (FOD) free case will survive harsh field and production environments. An adjustable tilt bail and anti-slip bumper allow the unit to be placed on just about any surface.
The Nortec 2000D+ incorporates our unique PowerLink software, which provides automatic probe recognition and documentation. The instrument can be set-up by recalling the program stored in the PowerLink chip, providing integrity and repeatability of inspection results.
As many as 120 programs can be stored and recalled later. Date and time are recorded with each set-up and are easily identified with alphanumeric values up to 29 characters long. 20 memory locations are available to store eddy current displays..
PN: 9122090.00 16 pin Lemo Scanner Connector Cable is missing from this system.
-50 Hz - 12 MHz frequency range
-Lightweight, less than 4lbs. (1.8 Kg)
-Digital conductivity in International Annealed Copper Standard (%IACS) or Mega Siemens per meter (MS/m)
-Non-conductive coating readings in inches or millimeters
-Internal balance loads for single coil probe support
-Display Freeze to hold flaw signals
-PowerLinkTM Technology - automatic probe recognition and instrument set-up
-Split screen presentation with color coded soft keys
-On screen reference memory for go/no go applications
-On board storage of 120 programs
-Windows-based EddyMasterTM Software
FrequencyRange: 50 Hz - 12 MHz
Gain: 0 - 90 dB in 0.1 dB steps. The horizontal and vertical gains may be adjusted separately or together.
Rotation: Variable 0 - 359
Sweep: Variable from 0.005 - 4 seconds per division
LowPassFilter: 10 - 500 Hz and wide band
HighPassFilter: Off, 2 to 500 Hz. 2 pole response
Variable Persistence: Screen persistence can be varied from 0.1 - 5 seconds.
Probe Types: Absolute and differential in either bridge or reflection configuration. The instrument is fully compatible with NORTEC PowerLink probes.
Alarms: Can be set to trigger on positive or negative
Alarm Modes: 1-3 box gates, polar, sweep, conductivity, and coating thickness
Trace Storage: 20 traces can be stored for recall. The traces can be static or frozen. They can contain up to 60 seconds of movement. The traces are stored with the date and time of capture.
Print Out: Provides a custom configurable report header containing the display screen data and probe parameters including serial number (PowerLink probes only)
Power: 7-pin connector to charge the internal battery and operate the instrument on AC power
RS-232: DB-9P connector, bi-directional serial data via RS-232
Analog Outputs: Horizontal and Vertical outputs of both F1 and F2. +/- 5 volts, 1 volt per division
Alarm Outputs: 9-pin analog and alarm output connector
Dimensions: 9.5" L x 5.5" H x 3.6" D (215 mm x 165 mm x 92 mm)
Weight: 3.8 lbs. (1.7 Kg) with battery
Operating Temperature: 14 F to 122 F (-10 C to 50 C), depending on configuration
Storage Temperature: -60 F to 160 F (-51 C to 71 C), depending on configuration
Classification: Based on Class 2 specifications from the MIL-PRF-28800F handbook
Altitude: Maximum operating and non-operating altitude - 15,000 ft. (4600 m)
Hazardous Area Operation: Safe operation as defined by Class I, Division 2, Group D, as found in the National Fire Association Code (NFPA 70), Section 500, and tested using MIL-STD-810F, Method 511.4, Procedure 1
Power Requirements: 85 to 240 volts, 50-60 Hz. External holder charges batteries outside the instrument. Charging time is typically 4 hours.
Low Battery Protection: Display bar graph "gas gauge" indicates approximate operating time.
Battery Operating Time: 8 hours (nominal depending on configuration)
Probe Type: NORTEC Conductivity Probe
Digital Conductivity Specification: Digital conductivity display from 0.9% to 110% IACS or 0.5 to 64 MS/m. Accuracy within +/- 0.5% IACS from 0.9% to 65% IACS and within +/- 1.0% of values over 62%. Meets or exceeds BAC 5651 specifications.
Non-Conductive Coating Thickness: Can measure non-conductive coating thickness from 0" to 0.015" (0 to 0.38 mm). Accuracy of +/- 0.001" (0.025 mm) over 0.00 to 0.015" (0 to 0.38 mm) range
Scanner Compatibility: Will operate all Olympus Nortec and other commercially available scanners
Waterfall Display: Stores up to 60 sweeps per hole and includes an on screen readout of the distance to the defect from the start of the scan (PS-5 only)
Frequency Extension: 50 Hz to 12 MHz
Second Frequency: 50 Hz to 3 MHz, 2nd frequency is an exact division of the first frequency in ratios of: 1/2 (F1 < 6 MHz), 1/4, and even divisors to 1/32.
Display: Frequency 1 (F1) only, Frequency 2 (F2) only, sum of F1 and F2, difference between F1 and F2, split screen with selected combinations of F1 and F2 and mixed frequencies
High Pass Filter: Available in Frequency 1 (F1) only
Thanks for looking and let me know if you have any questions about the item, I will do my best to answer.
Nortex 60KHz Conductivity PN: 922340.00 ( J7NL70432 )
