Usb to 3V3 logic converter with 3V3 regulated output

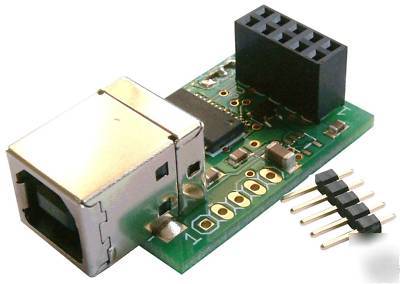

BV102 USB Serial to Logic Converter 3V3
This is a USB device that installs a a virtual COM port and passes those signals to any circuit requiring 3V3 logic. It has a built in regulator capable of delivering 150mA to external circuitry.
The device comes with a dual output socket for the most common TX, RX, Ground and 3V3 output. There is a side connector that has the other signals.
The board utilises the FT232BM chip and free drivers are available from The Virtual COM port (VCP) driver should be used.
* TX, RX, CTX, RTS, DTR, DSR and DCD signals available
* 3V3 output with short circuit protection, up to 150mA
* 2 x 5 way sockets for connecting to serial devices
* 1 x 5 way pinhead supplied loose
* Size: 31mm x 21mm x 13mm High
Comes with CD-ROM and free terminal software.
