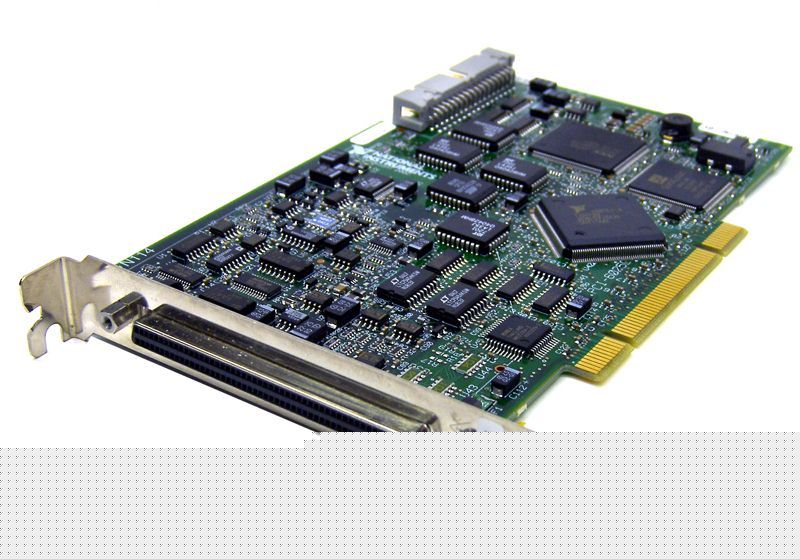

National instruments pci-6025E multifunction daq board
NATIONAL INSTRUMENTS PCI-6025E MULTIFUNCTION DAQ BOARD
National Instruments Multi-Function Input / Output DAQ Board
Add sensor and high-voltage measurement capability to your E Series device with National Instruments SCC or SCXI signal conditioning. The National Instruments PCI-6025E is a low-cost data acquisition board that uses E Series technology to deliver high-performance and reliable data acquisition capabilities in a wide range of applications.
You get up to 200 kS/s, 12-bit performance on 16 single-ended analog inputs. Depending on your type of hard drive, the NI PCI-6025E can stream to disk at rates up to 200 kS/s.
Using NI hardware and driver software options, you have flexible OS, application development environment, and application software choices.
Two 12-bit analog outputs; 32 digital I/O lines; two 24-bit counters
NIST-traceable calibration certificate and more than 70 signal conditioning options
LabVIEW, LabWindows/CVI, and Measurement Studio for Visual Basic and Visual Studio .NET integration
