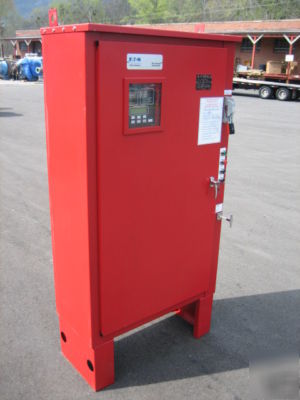

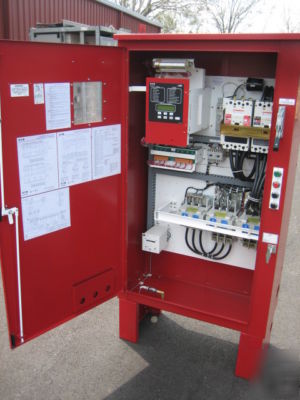

Eaton fire pump controller 200 hp FD70-200D-lmr-L1-X1
Fire Pump Controller / Automatic Transfer Switch
Suitable for use on a circuit capable of delivering not more than 100,000 Amperes R.M.S. Symmetrical @ 480 Volts AC
Each Pump Controller is UL and FM approved.
Cutler-Hammer Molded Case Switch
Series C, Cat. No. KD3400NW, 400 Amps, 600 VAC/CA, 3 Pole, Style 8985A71GD9
Cutler Hammer Motor Circuit Protector
Series C, Cat. No. HMCP400X5 Style 8985A44G10, 400 Amps, 600 V AC, 3 Pole, 250 VDC/CC
Cutler-Hammer Nema Size 4 Contactor, CN15NN3, Series B1, Contact Kit 6-26-2, 135 Amp, 600 Volt, 3 Phase, 3 Pole, 100 HP @ 460/575 Volts
Coil = 480 V @ 60 Hz & 440 V @ 50 Hz, 1891-3
2x Cutler-Hammer Nema Size 5 Contactors, CN15SN3, Series A1, Contact Kit 6-45-2, 270 Amp, 600 Volt, 3 Phase, 3 Pole, 200 HP @ 460/575 Volts
Cutler-Hammer Lightning Arrester CHSA03, MCOV 600 VAC
Cutler-Hammer Relay Panel, S/N 3A15574H02, Ver. 2.1
2x Cutler-Hammer Contactors, D15CR22, Series B1, 22E
3x CTs (Current Transformers), 1275F464
