New shop fox W1745 6" 1HP jointer w/ mobile base ( )

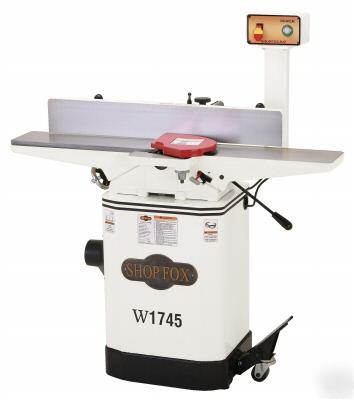

Shop Fox W1745 6" 1hp 1ph Jointer w/ Mobile Base
W1745 - 6" Jointer W/ Mobile Base
The latest addition to our family of jointers has some of the most remarkable features found anywhere. Starting from the ground up: built-in "kick-stand" mobile base (just push the lever down, push the machine where you want it and kick the lever back up!), built-in dust chute with 4" dust collection hood, quick adjusting lever on the infeed table, fine control handwheel on the outfeed table, positive stop at 1/8" on the infeed table, large 5" x 35" cast iron fence, rack and pinion fence adjustment, and an easy access switch with a removable safety key. Specifications:
* Motor: 1 HP, 110V, 14A Single-phase
* Maximum rabbeting capacity: 1/2"
* Cutterhead diameter: 2 1/2"
* Cutterhead speed: 4800 RPM
* Table height from floor: 32 1/2"
* Cutter head speed: 4800 RPM
* Fence adjustment: positive stops @ +/- 45 deg. & 90 deg.
* Overall dimensions: 46"L x 27 1/2"W x 37 1/4"H
* Tables: Precision Ground Cast Iron
* Bearings: Sealed and Permanently Lubricated
* Ways: Dovetailed, Adjustable
* Handwheel / Lever Table Raising
* Independently Adjustable Tables
