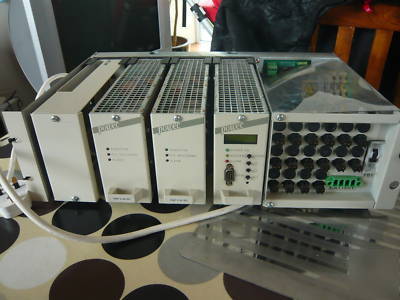

Powec modular dc power shelf system
THIS ITEM IS IN LIKE NEW CONDITION
modules provide a cost-effective power solution
in the highest possible density. Built on the
latest advances in the resonance switch mode
approach (soft-switching), the PMP 7
are the next evolution in our small
convection-cooled rectifier series.
Optimized for telecom applications, the modules
are designed to work in a multitude of different
subrack/shelf configurations incorporating the
Power-One PCU controller and various
Scalable systems can be quickly expanded to ultimate capacity:
* 18 to 40 amp capacity at -48V
115 VOLT single three-phase input with PFC.
Convection Cooled, up to 92% efficient, rectifiers have MTBF's > 1 million hours.
Single Point voltage adjustment.
True plug-and-play rectifiers and controllers.
Can accommodate up to 20 circuit breakers from 2 to 63 amps.
LCD display for self-guided controller operation.
Interfaces include RS232, SNMP, and Form "C" dry alarm contacts with grouped alarms.
Intelligent battery management:
* Temperature compensation (requires optional cables).
* Programmable battery load testing with data logging.
* Battery module voltage monitoring (requires optional cables).
* Symmetry (requires optional cables).
* Programmable low voltage disconnect.
Input overvoltage disconnection
International standards compliance
Natural convection cooling
SNMP interface adapter available.
International standards compliance
