Rosemount hart comm. smart fam interface calibrator 268

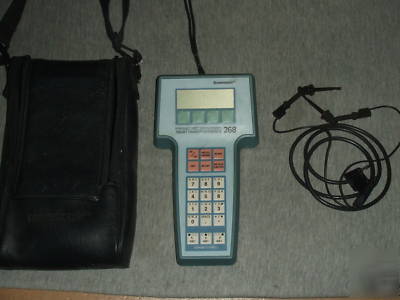

You will receive what you see in the picture
Hand-held Configurator / Calibrator
Intrinsically safe interface for use with Rosemount smart transmitters.
* Common interface for all Rosemount SMART FAMILY instruments
* Digital communications via the HART protocol without interruption of transmitter output signal
* Microprocessor-based electronics
* Large 4 line x 20 character display
* Memory: Nonvolatile memory retains contents when unit is powered down, so long as the battery source is supplying power.
* Power Supply: Five AA 1.5 V batteries (rechargeable optional)
* Operating: 32 to 122 F (0 to 50 C)
* Storage Limits: -4 to 158 F (-20 to 70 C)
* Humidity Limits: 0 to 95% RH
* Hazardous Locations Certifications:
* CENELEC/BASEEFA Intrinsic Safety Certification
* Factory Mutual (FM) Intrinsic Safety and Non-incendive Approval
* Canadian Standards Association (CSA) Intrinsic Safety Approval
* Standards Association of Australia (SAA) Intrinsic Safety Certification
* Display: 4-line liquid crystal display with 20-character line width
* Keyboard: Complete alphanumeric keyboard, six dedicated function keys, and four software-defined keys
* Weight: 2 lbs (0.9 kg) including batteries
