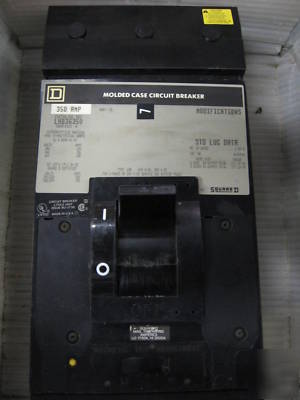

Square d circuit breaker 3P 350A 600V LHB36350 LH36350
SQUARE D CIRCUIT BREAKER 3P 350A 600V
WILL ALSO WORK IN PLACE OF LH36350. ONLY DIFFERENCE IS THE LHB HAS SET SCREWS ON THE BUSS CLAMPS FOR AN EXTRA TIGHT CONNECTION
MOLDED CASE, THERMAL MAGNETIC; L FRAME; 240 VAC AT 50/60 HZ, 480 VAC STAR/277 VAC AT 50/60 HZ, 480 VAC AT 50/60 HZ, 600 VAC STAR/347 VAC AT 50/60 HZ, 600 VAC AT 50/60 HZ (UL/CSA/NOM); 240/415 VAC AT 50/60 HZ (IEC); 250 VDC; 350 AMPERE AT 40 DEG C; 3 POLE; INTERRUPTING RATING 65 KILOAMPERE AT 240 VAC, 35 KILOAMPERE AT 480 VAC STAR/277 VAC OR 480 VAC, 25 KILOAMPERE AT 600 VAC STAR/347 VAC OR 600 VAC (UL/CSA/NOM); 20 KILOAMPERE AT 240/415 VAC (IEC); 10 KILOAMPERE AT 250 VDC; SIZE 6 INCH W X 5.84 INCH D X 11 INCH H; APPROVAL UL, CSA, CE; I-LINE[R] BRAND; LH MODEL; APPLICABLE STANDARD IEC 947-2
